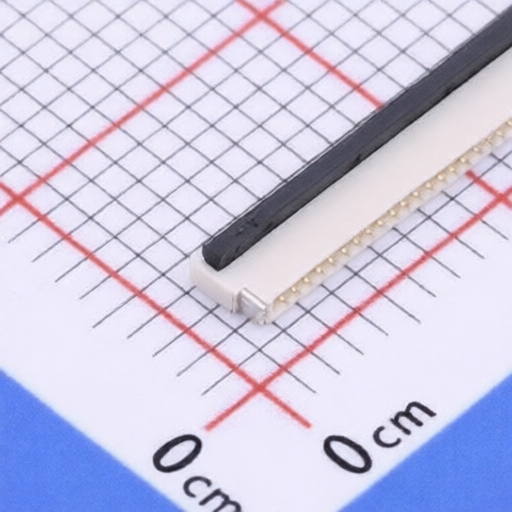

kinghelm KH-FPC0.5-H1.0SMT-26P-QCHF
Manufacturer:
kinghelm
Asian Brands
Mfr. Part #:
KH-FPC0.5-H1.0SMT-26P-QCHF
Package:
SMD,P=0.5mm
Customer #:
Key Attributes:
CONN FFC FPC 26POS 0.5mm SMD
Description:
FFC/FPC Connector 26 Position 0.5mm Pitch
Datasheet:
kinghelm KH-FPC0.5-H1.0SMT-26P-QCHF
Products Specifications
Manufacturer:
Package:
SMD,P=0.5mm
Operating Temperature:
-55℃~+85℃
Locking Feature:
Hinged Lid
Number of Contacts:
26P
Pitch:
0.5mm
Current Rating:
500mA
Voltage Rating (Max):
50V
Contact Type:
Double-Sided Contacts, Top and Bottom Entry
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.3mm
Contact Material:
Copper alloy
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
