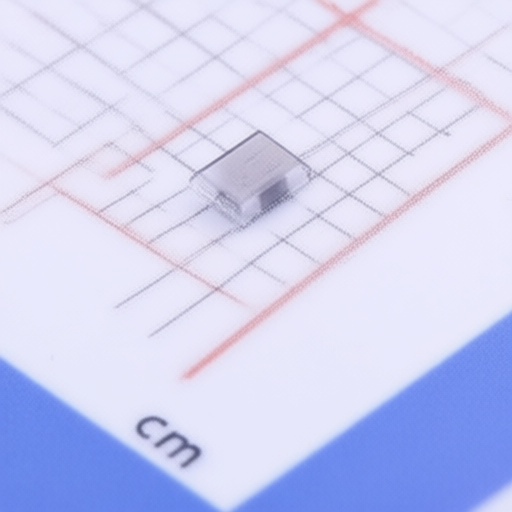

KEC KDS120-RTK/P
Manufacturer:
KEC
Mfr. Part #:
KDS120-RTK/P
Package:
USM
Customer #:
Description:
4ns 80V 1 Pair Series Connection 920mV@100mA 100mA USM Single Diodes RoHS
Datasheet:
KEC KDS120-RTK/P
Products Specifications
Manufacturer:
Package:
USM
Reverse Leakage Current (Ir):
500nA@80V
Reverse Recovery Time (trr):
4ns
Operating Junction Temperature Range:
-55℃~+150℃@(Tj)
Voltage - DC Reverse (Vr) (Max):
80V
Diode Configuration:
1 Pair Series Connection
Voltage - Forward(Vf@If):
920mV@100mA
Current - Rectified:
100mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541100000 |
| USHTS | 8541100040 |
| TARIC | 8541100000 |
| CAHTS | 8541100090 |
| BRHTS | 85411011 |
| INHTS | 85411000 |
| MXHTS | 8541.10.01 |
