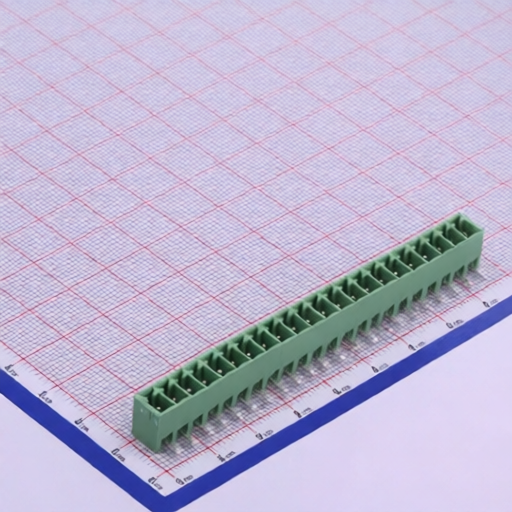

KANGNEX WJ15EDGRC-3.81-22P-14-00A
Manufacturer:
KANGNEX
Asian Brands
Mfr. Part #:
WJ15EDGRC-3.81-22P-14-00A
Package:
Through Hole,Right Angle,P=3.81mm
Customer #:
Description:
300V -40℃~+105℃ 22 10A Green 3.81mm Board Side/Socket - Closed 1 Hinged (Snap On) 1x22P Right-Angle Pin Through Hole,Right Angle,P=3.81mm Headers, Plugs and Sockets RoHS
Datasheet:
KANGNEX WJ15EDGRC-3.81-22P-14-00A
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3.81mm
Wire Gauge - mm2:
-
Wire Gauge - AWG:
-
Number of Pins:
22P
Voltage Rating (Max):
300V
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
22
Current Rating:
10A
Color:
Green
Outlet Direction (Vertical Basis):
-
Connection Type:
-
Pitch:
3.81mm
Connector Type:
Board Side/Socket - Closed
Number of Rows:
1
Termination Style:
Hinged (Snap On)
Pin Structure:
1x22P
Mounting Type:
Right-Angle Pin
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
KANGNEX
997 Products
Ningbo Kangnex Electric Co., Ltd.
(hereinafter referred to as "Kangnex" or "Ningbo Kangnex Elec") was founded in 2014. It is an electronic component enterprise integrating new product R&D, large-scale production, and branded sales, it is also a professional manufacturer of connectors and terminal blocks. The company's products mainly include European PCB terminal blocks, plug-in terminal blocks, through-type terminal blocks, screw-free spring terminals, and fence-type terminal blocks. The products have passed CE and SGS environmental testing certification and are widely used in instrumentation, lighting, elevator control, communications, high-voltage equipment and other fields. In the process of development, Kangnex has successively established a series of departments such as R&D center, mold center, automated tapping, hardware processing, automated assembly, computerized operation, etc., and passed ISO9001 quality management system certification, so as to better provide customers with
