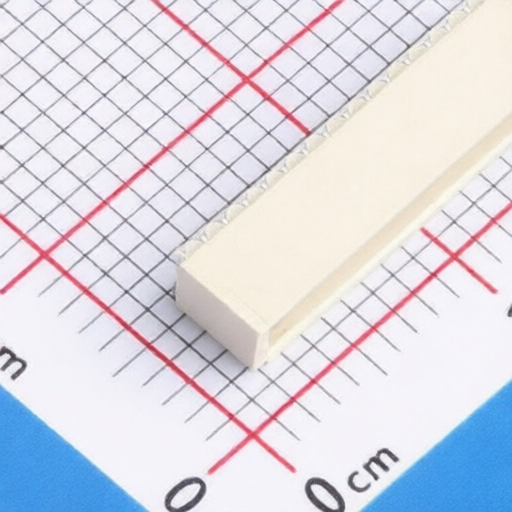

JXTCONN D100F1W1-2W14P43
Manufacturer:
JXTCONN
Mfr. Part #:
D100F1W1-2W14P43
Package:
SMD,P=1mm,Surface Mount,Right Angle
Customer #:
Description:
Connector Header 14 position -25℃~+85℃
Datasheet:
JXTCONN D100F1W1-2W14P43
Products Specifications
Manufacturer:
Package:
SMD,P=1mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
5.05mm
Pins Structure:
1x14P
Pitch:
1.1mm
Contact Material:
Brass;LCP
Voltage Rating (Max):
50V
Number of PINs Per Row:
14
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
16.35mm
Mounting Type:
Surface Mount, Right Angle
Z-Height of the Board:
3.15mm
Operating Temperature:
-25℃~+85℃
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
