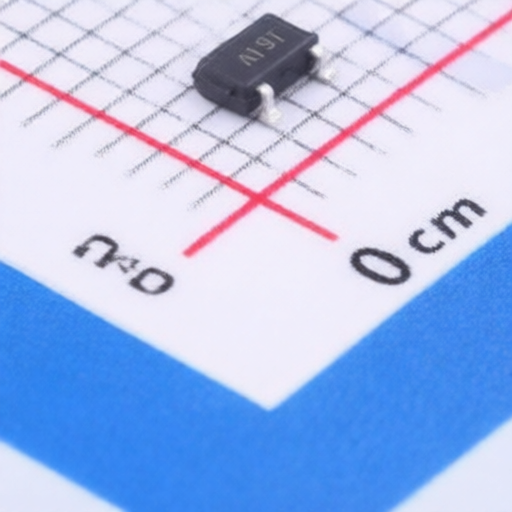

JUXING JX3401S3
Manufacturer:
JUXING
Asian Brands
Mfr. Part #:
JX3401S3
Package:
SOT-23-3
Customer #:
Key Attributes:
MOSFET P-CH 30V 4A SOT-23-3
Description:
P-Channel 30V 4A 1.7W Surface Mount SOT-23-3
Datasheet:
JUXING JX3401S3
Products Specifications
Manufacturer:
Package:
SOT-23-3
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
4A
Operating Temperature -:
-55℃~+150℃@(Tj)
RDS(on):
71mΩ@2.5V
Gate Threshold Voltage (Vgs(th)):
1.3V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
66pF
Number:
1 P-Channel
Output Capacitance(Coss):
104pF
Input Capacitance(Ciss):
880pF@15V
Pd - Power Dissipation:
1.7W
Gate Charge(Qg):
8.5nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JUXING
1016 Products
Guangdong Juxing Electronic Technology Co., Ltd.
(hereinafter referred to as "JUXING") was established in 2003. It is a specialized and innovative enterprise engaged in the research and development, production, sales and technical services of semiconductor discrete devices. The company's main products include various series of diode products in various packaging forms such as ordinary rectification, fast recovery, high efficiency, Schottky, switch, voltage regulator, etc. At the same time, it provides customers with semiconductor discrete devices such as triodes and MOS tubes. All products comply with EU standards (ROHS) and can provide customers with professional services such as tailor-made and R&D design. Products are widely used in lighting, computers, automotive electronics, power supplies, consumer electronics and other fields. JUXING has introduced a full set of advanced equipment and scientific management systems, and the annual production and sales of diodes and bridge stacks
