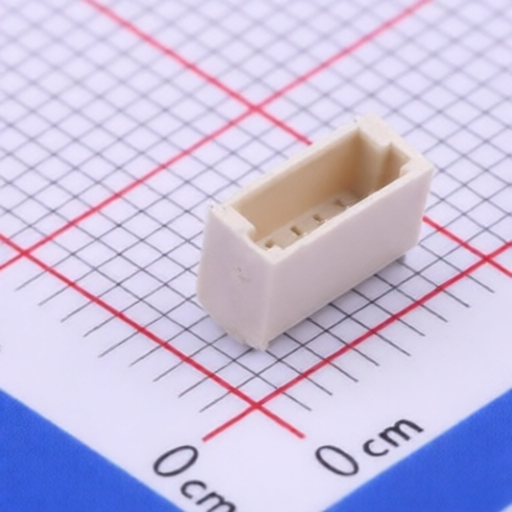

JUSHUO AFC10-S05QCC-00
Manufacturer:
JUSHUO
Asian Brands
Mfr. Part #:
AFC10-S05QCC-00
Package:
SMD,P=1mm
Customer #:
Key Attributes:
CONN HEADER SMD 5POS 1mm
Description:
Connector Header 5 position 1mm Pitch
Datasheet:
JUSHUO AFC10-S05QCC-00
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Y-Width of Bottom Edge on Board:
4.2mm
Reference Series:
-
Pins Structure:
1x5P
Contact Plating:
Tin
Contact Material:
Phosphor Bronze;LCP
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
1mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
5
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
6.2mm
Z-Height of the Board:
3.05mm
Row Spacing:
-
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 82 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
