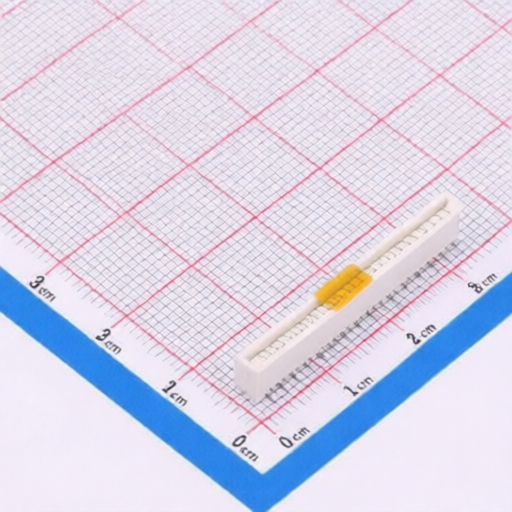

JUSHUO AFB10-S30LCA-00
Manufacturer:
JUSHUO
Asian Brands
Mfr. Part #:
AFB10-S30LCA-00
Package:
SMD,P=1mm(Staggered Pins)
Customer #:
Key Attributes:
CONN HEADER SMD 1mm
Description:
Connector Header 1mm Pitch Surface Mount,Vertical -20℃~+80℃
Datasheet:
JUSHUO AFB10-S30LCA-00
Products Specifications
Manufacturer:
Package:
SMD,P=1mm(Staggered Pins)
Y-Width of Bottom Edge on Board:
4.75mm
Pins Structure:
2x15P
Contact Plating:
Tin
Contact Material:
Phosphor Bronze;LCP
Pitch:
1mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
15
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
33mm
Z-Height of the Board:
5.6mm
Operating Temperature:
-20℃~+80℃
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
