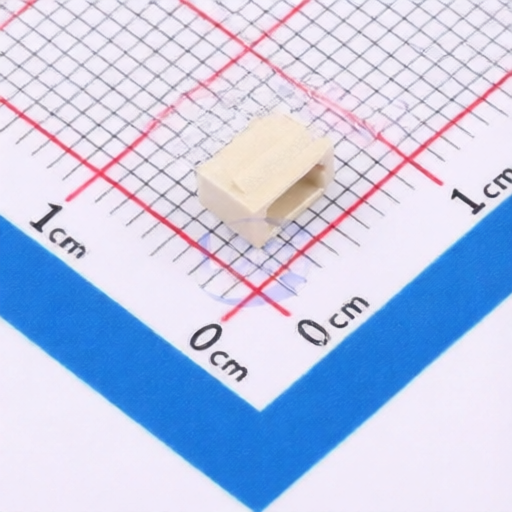

JUSHUO SHB10-S03DCA-00
Manufacturer:
JUSHUO
Asian Brands
Mfr. Part #:
SHB10-S03DCA-00
Package:
SMD,P=1mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 3POS 1mm
Description:
1x3P SH Tin -25℃~+85℃ 1mm 150V 3 1 Surface Mount, Right Angle SMD,P=1mm,Surface Mount,Right Angle Headers, Male Pins RoHS
Datasheet:
JUSHUO SHB10-S03DCA-00
Products Specifications
Manufacturer:
Package:
SMD,P=1mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
4.4mm
Pins Structure:
1x3P
Reference Series:
SH
Contact Plating:
Tin
Contact Material:
Phosphor Bronze;LCP
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
1mm
Voltage Rating (Max):
150V
Number of PINs Per Row:
3
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
5.3mm
Mounting Type:
Surface Mount, Right Angle
Z-Height of the Board:
3.05mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
