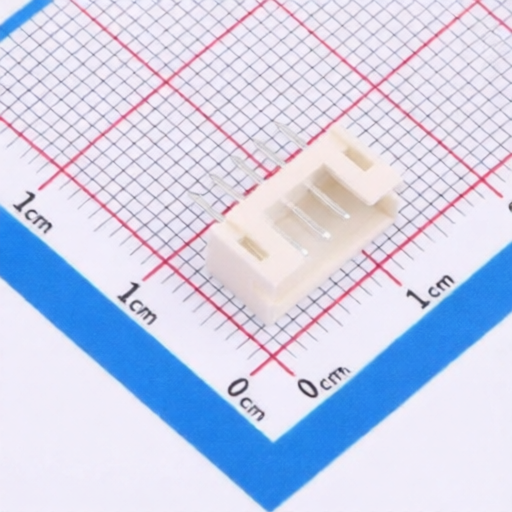

JUSHUO JS20T-S05PHA-00
Manufacturer:
JUSHUO
Asian Brands
Mfr. Part #:
JS20T-S05PHA-00
Package:
Through Hole,P=2mm
Customer #:
Key Attributes:
CONN HEADER TH 5POS 2mm
Description:
Connector Header 5 position 2mm Pitch Through Hole
Datasheet:
JUSHUO JS20T-S05PHA-00
Products Specifications
Manufacturer:
Package:
Through Hole,P=2mm
Y-Width of Bottom Edge on Board:
4.7mm
Reference Series:
PH
Pins Structure:
1x5P
Contact Plating:
Tin
Contact Material:
Brass;LCP
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
2mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
5
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
12mm
Z-Height of the Board:
6mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JUSHUO
1306 Products
Shenzhen Jushuo Electronics Co., Ltd.
(hereinafter referred to as "JUSHUO") was founded in 2001. It is a professional brand manufacturer of FPC connectors and FFC cable accessories, integrating mold design, research and development, manufacturing and sales. The company has introduced advanced production equipment and has a complete set of production and inspection equipment such as precision grinding machines, fully automatic high-speed punching machines, precision injection molding machines, FFC cable forming machines, fully automatic assembly production lines, projectors, hardness testers, salt spray testers, life testers, SMT reflow soldering, etc. Products are widely used in many fields such as computers, smart homes, wearable devices, LED lighting, medical equipment, etc. JUSHUO adheres to the business philosophy of "technological innovation, pragmatism and integrity, sustainable development," sincerely provides the best service to all customers.
