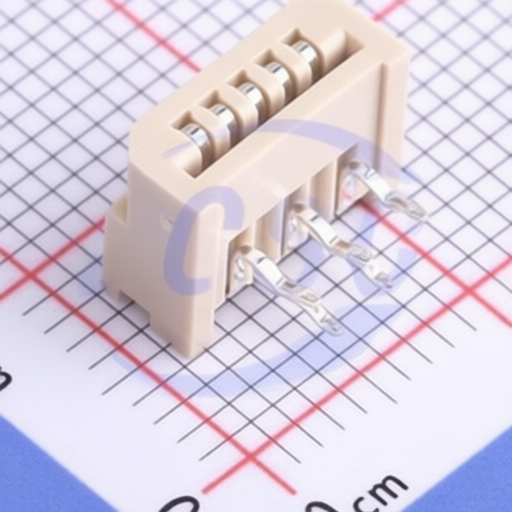

JUSHUO AF125-S05WCC-00
Manufacturer:
JUSHUO
Asian Brands
Mfr. Part #:
AF125-S05WCC-00
Package:
Through Hole,Right Angle,P=1.25mm
Customer #:
Key Attributes:
CONN FFC FPC 5POS 1.25mm TOP CNT TH R/A
Description:
FFC/FPC Connector 5 Position 1.25mm Pitch Top Contact Through Hole, Right Angle
Datasheet:
JUSHUO AF125-S05WCC-00
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=1.25mm
Operating Temperature:
-40℃~+85℃
Locking Feature:
Non-Latching
Number of Contacts:
5P
Pitch:
1.25mm
Current Rating:
1A
Voltage Rating (Max):
125V
Contact Type:
Top Contact
Mounting Type:
Right Angle
FFC, FCB Thickness:
0.3mm
Contact Plating:
Tin
Contact Material:
Phosphor Bronze
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 58 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JUSHUO
1306 Products
Shenzhen Jushuo Electronics Co., Ltd.
(hereinafter referred to as "JUSHUO") was founded in 2001. It is a professional brand manufacturer of FPC connectors and FFC cable accessories, integrating mold design, research and development, manufacturing and sales. The company has introduced advanced production equipment and has a complete set of production and inspection equipment such as precision grinding machines, fully automatic high-speed punching machines, precision injection molding machines, FFC cable forming machines, fully automatic assembly production lines, projectors, hardness testers, salt spray testers, life testers, SMT reflow soldering, etc. Products are widely used in many fields such as computers, smart homes, wearable devices, LED lighting, medical equipment, etc. JUSHUO adheres to the business philosophy of "technological innovation, pragmatism and integrity, sustainable development," sincerely provides the best service to all customers.
