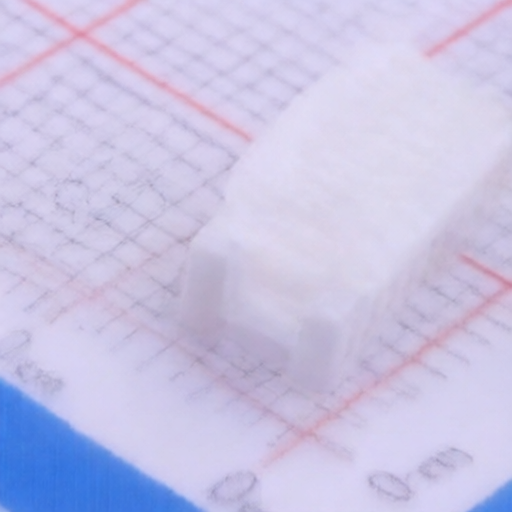

JST SHDR-20V-S-B
Manufacturer:
JST
Mfr. Part #:
SHDR-20V-S-B
Package:
P=1mm
Customer #:
Key Attributes:
CONN HOUSING 20POS 1mm DUAL ROW SHD
Description:
Connector Housing 20 Position 1mm Pitch Dual Row SHD Series PBT -25℃~+85℃
Datasheet:
JST SHDR-20V-S-B
Products Specifications
Manufacturer:
Package:
P=1mm
Flame Retardant Rating:
UL94V-0
Pitch:
1mm
colour:
White
Number of Rows:
2
With Wings:
Without Fins
Reference Series:
SHD
Operating Temperature:
-25℃~+85℃
Plastic Material:
PBT
Number of PINs Per Row:
10
Number of Positions or Pins:
2x10P
With Locker:
Non-Latching
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 3926909090 |
| USHTS | 3926909950 |
| TARIC | 3926909790 |
| CAHTS | 3926909990 |
| BRHTS | 39269090 |
| INHTS | 39269099 |
| MXHTS | 3926.90.99 |
