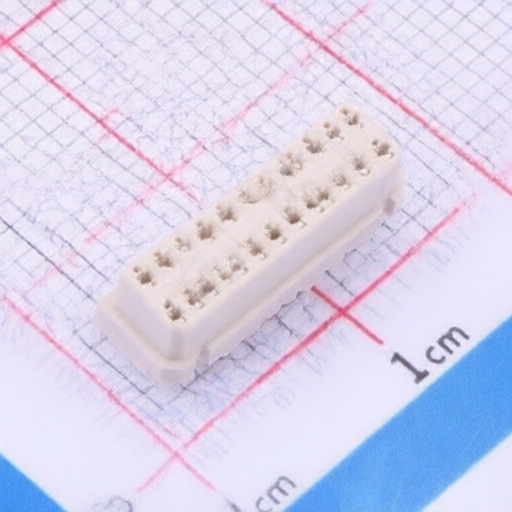

JST 22R-JED(LF)(SN)
Manufacturer:
JST
Mfr. Part #:
22R-JED(LF)(SN)
Package:
Through Hole,P=1.25mm
Customer #:
Key Attributes:
CONN SOCKET 22POS 1.25mm DUAL ROW TH
Description:
Female Header 22 Position 1.25mm Pitch Dual Row Through Hole -25℃~+85℃
Datasheet:
JST 22R-JED(LF)(SN)
Products Specifications
Manufacturer:
Package:
Through Hole,P=1.25mm
Pitch:
1.25mm
Row Spacing:
2mm
Number of Rows:
2
Number of Pins:
22P
Voltage Rating (Max):
50V
Contact Plating:
-
Contact Material:
Phosphor Bronze
Operating Temperature:
-25℃~+85℃
Current Rating:
1A
Mounting Type:
Through Hole
Circular Hole / Square Hole:
Square Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
