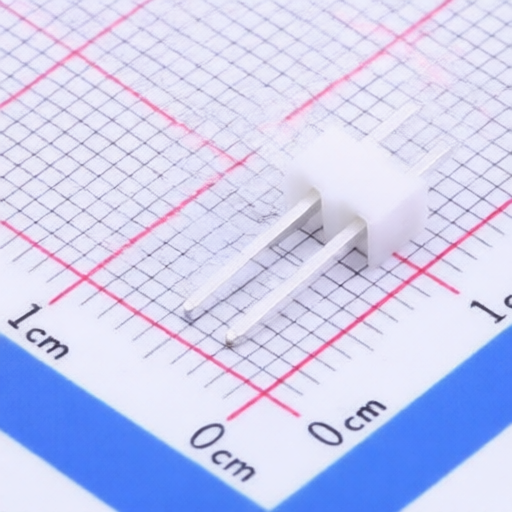

JST SB2P-HVQ-CA(LF)(SN)
Manufacturer:
JST
Mfr. Part #:
SB2P-HVQ-CA(LF)(SN)
Package:
Through Hole,P=2.5mm
Customer #:
Key Attributes:
CONN HEADER 2POS 2.5mm SINGLE ROW TH
Description:
Pin Header 2 Position 2.5mm Pitch Single Row Through Hole -25℃~+85℃
Datasheet:
JST SB2P-HVQ-CA(LF)(SN)
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.5mm
Number of Pins:
2P
Pins Structure:
1x2P
Contact Plating:
-
Contact Material:
Brass
Operating Temperature:
-25℃~+85℃
Color:
White
Circluar Pins/Square Pins:
-
Pitch:
2.5mm
Insulation Height:
3.3mm
Length of Mating Pin:
7.5mm
Voltage Rating (Max):
-
Length of End Connection Pin:
3.4mm
Number of Rows:
1
Current Rating-Signal:
-
Mounting Type:
Through Hole
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
