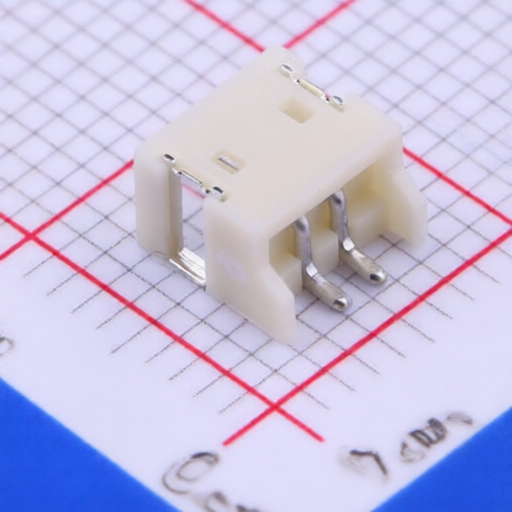

JST S2B-ZR-SM4A-TF(LF)(SN)
Manufacturer:
JST
Mfr. Part #:
S2B-ZR-SM4A-TF(LF)(SN)
Package:
SMD,P=1.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 2POS 1.5mm
Description:
Connector Header 2 position 1.5mm Pitch 1A Surface Mount, Right Angle -25℃~+85℃
Datasheet:
JST S2B-ZR-SM4A-TF(LF)(SN)
Products Specifications
Manufacturer:
Package:
SMD,P=1.5mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
6.5mm
Pins Structure:
1x2P
Reference Series:
ZH
Contact Plating:
Tin
Contact Material:
Brass;PA6T
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Supplementary Features:
Auxiliary Solder Pin
Pitch:
1.5mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
2
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
6mm
Z-Height of the Board:
3.7mm
Row Spacing:
-
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
