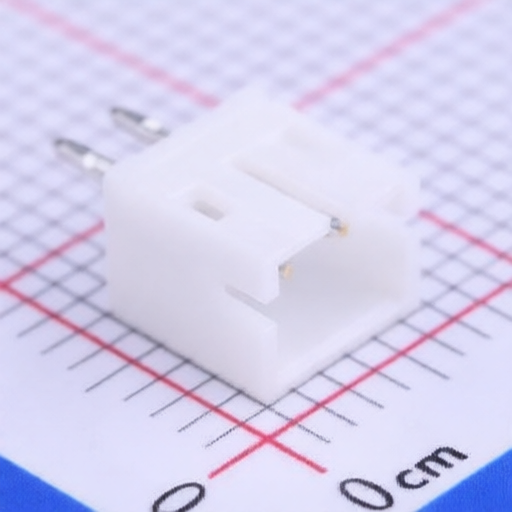

JST B2B-PH-K-S(LF)(SN)
Manufacturer:
JST
Mfr. Part #:
B2B-PH-K-S(LF)(SN)
Package:
Through Hole,P=2mm
Customer #:
Key Attributes:
CONN HEADER TH 2POS 2mm
Description:
Connector Header 2 position 2mm Pitch 2A Through Hole -25℃~+85℃
Datasheet:
JST B2B-PH-K-S(LF)(SN)
Products Specifications
Manufacturer:
Package:
Through Hole,P=2mm
Y-Width of Bottom Edge on Board:
4.5mm
Pins Structure:
1x2P
Reference Series:
PH
Contact Plating:
Tin
Contact Material:
Brass;PA66
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Supplementary Features:
K Pin
Pitch:
2mm
Voltage Rating (Max):
100V
Number of PINs Per Row:
2
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
5.9mm
Z-Height of the Board:
6mm
Row Spacing:
-
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
