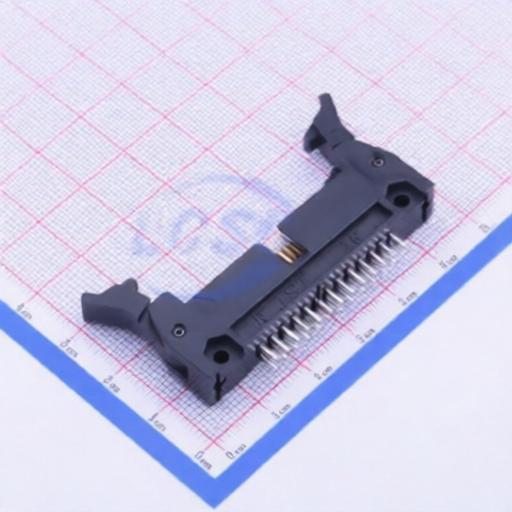

JST RA-H261TD(LF)(SN)
Manufacturer:
JST
Mfr. Part #:
RA-H261TD(LF)(SN)
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
CONN IDC HEADER TH 26POS 2.54mm
Description:
Connector IDC Header Through Hole 26 position 2.54mm
Datasheet:
JST RA-H261TD(LF)(SN)
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Row Spacing:
2.54mm
Contact Plating:
-
Contact Material:
Brass
Number of Positions or Pins:
2x13P
Number of PINs Per Row:
13
Number of Rows:
2
Connector Type:
IDC Header
Pitch:
2.54mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
