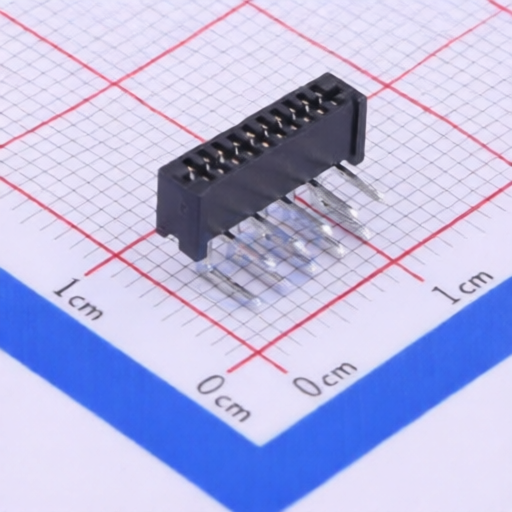

JST 10FM-1.0ST(LF)(SN)
Manufacturer:
JST
Mfr. Part #:
10FM-1.0ST(LF)(SN)
Package:
Through Hole,Right Angle,P=1mm
Customer #:
Key Attributes:
CONN FFC FPC 10POS 1mm TOP AND BOTTOM CNT TH R/A
Description:
FFC/FPC Connector 10 Position 1mm Pitch Double-Sided Contacts, Top and Bottom Entry Through Hole, Right Angle
Datasheet:
JST 10FM-1.0ST(LF)(SN)
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=1mm
Locking Feature:
-
Number of Contacts:
10P
Pitch:
1mm
Contact Type:
Double-Sided Contacts, Top and Bottom Entry
Mounting Type:
Right Angle
FFC, FCB Thickness:
0.33mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JST
2697 Products
JST
- JST has been dedicated to excellence in connection technology as a global manufacturer of high quality (ISO-9001/QS-9000) sub-miniature connectors since 1957. Our product offering consists of Wire-to-Wire, Wire-to-Board, Board-to-Board, Flex/Flat Cable, memory connectors, solderless terminals, chain terminals, shunts and application tooling. JST's Engineering Centers offer design and development, prototype and pre-production manufacturing, and electrical/environmental testing capabilities. Production flexibility, innovative product development, production engineering, quality assurance, value added solutions and responsiveness to customer needs are what have fueled our growth and resulted in rewarding partnerships with our valued customers.
