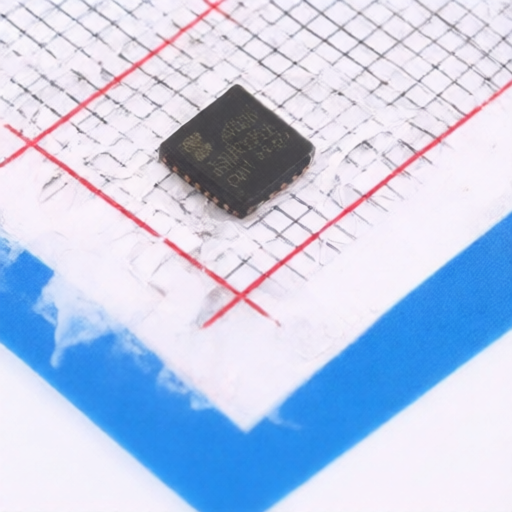

JSMSEMI JSM6288Q
Manufacturer:
JSMSEMI
Asian Brands
Mfr. Part #:
JSM6288Q
Package:
QFN-24
Customer #:
Key Attributes:
Three-phase high and low side power MOSFET/IGBT driver chip
Description:
QFN-24 Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
QFN-24
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
-
Propagation Delay tpHL:
-
Peak Output Current(Source):
1.5A
Rise Time:
30ns
Peak Output Current(Sink):
1.8A
Features:
Under Voltage Protection
Fall Time:
30ns
Quiescent Current(Iq):
230uA
Load Type:
MOSFET
Input Voltage (Vin):
8V~20V
Driven Configuration:
High Side;Low Side;Three Phase
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JSMSEMI
2258 Products
Shenzhen JSMicro Semiconductor Co., Ltd.
(hereinafter referred to as "JSMSEMI") is a company specializing in the production of Hall magnetic sensor SOC chips, driver ICs, power management chips (AC-DC/DC-DC), MOSFETs, diodes/transistors, transistors, thyristors, etc. JSMSEMI has a complete independent research and development system and masters a number of domestic leading key core technologies. It has developed various magnetic switch series chips, magnetic speed and direction sensor chips, linear sensor chips, and magnetic encoder chips, and provides high-reliability power analog IC chips for end customers in the automotive electronics, photovoltaic and energy storage, data center and industrial control market. JSMSEMI has passed the ISO9001:2008 quality management system certification, and its products meet SGS, SVHC and RoHS standards. JSMSEMI is committed to providing high-quality, high-efficiency and high-reliability products to global customers.
