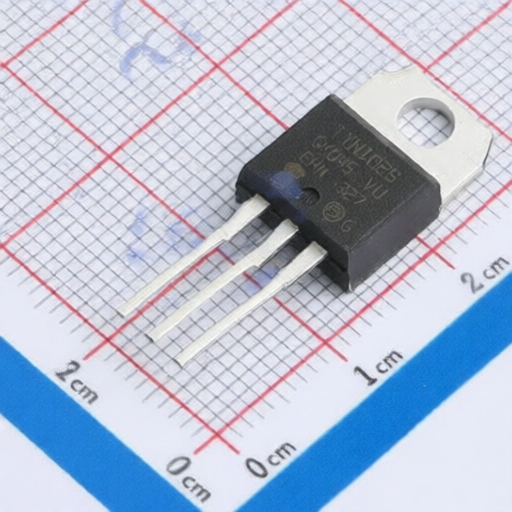

JSMSEMI TYN1025RG-JSM
Manufacturer:
JSMSEMI
Asian Brands
Mfr. Part #:
TYN1025RG-JSM
Package:
TO-220-3
Customer #:
Key Attributes:
SCR 800V 25A TO-220-3
Description:
SCR 800V 25A Through Hole TO-220-3
Datasheet:
JSMSEMI TYN1025RG-JSM
Products Specifications
Manufacturer:
Package:
TO-220-3
Holding Current (Ih):
30mA
Current - Gate Trigger(Igt):
15mA
Voltage - On State(Vtm):
1.5V
Average Gate Power Dissipation (PG(AV)):
1W
Current - On State(It(RMS)):
25A
Peak off - state voltage(Vdrm):
800V
Current - Surge(Itsm@f):
120A
SCR Type:
1 SCR
Operating Temperature:
-40℃~+125℃
Gate Trigger Voltage (Vgt):
1.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541300000 |
| USHTS | 8541300080 |
| TARIC | 8541300000 |
| CAHTS | 8541300000 |
| BRHTS | 85413019 |
| INHTS | 85413010 |
| MXHTS | 8541.30.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JSMSEMI
2258 Products
Shenzhen JSMicro Semiconductor Co., Ltd.
(hereinafter referred to as "JSMSEMI") is a company specializing in the production of Hall magnetic sensor SOC chips, driver ICs, power management chips (AC-DC/DC-DC), MOSFETs, diodes/transistors, transistors, thyristors, etc. JSMSEMI has a complete independent research and development system and masters a number of domestic leading key core technologies. It has developed various magnetic switch series chips, magnetic speed and direction sensor chips, linear sensor chips, and magnetic encoder chips, and provides high-reliability power analog IC chips for end customers in the automotive electronics, photovoltaic and energy storage, data center and industrial control market. JSMSEMI has passed the ISO9001:2008 quality management system certification, and its products meet SGS, SVHC and RoHS standards. JSMSEMI is committed to providing high-quality, high-efficiency and high-reliability products to global customers.
