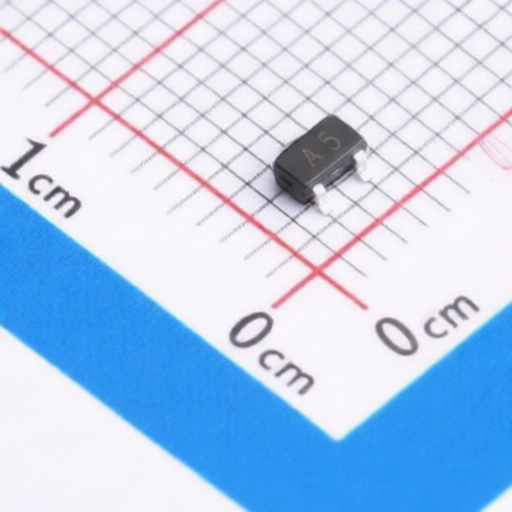

JSMSEMI JSM2305
Manufacturer:
JSMSEMI
Mfr. Part #:
JSM2305
Package:
SOT-23-3L
Customer #:
Description:
12V 4.1A 350mW Surface Mount SOT-23-3L
Datasheet:
JSMSEMI JSM2305
Products Specifications
Manufacturer:
Package:
SOT-23-3L
Drain to Source Voltage:
12V
Current - Continuous Drain(Id):
4.1A
Operating Temperature -:
-55℃~+150℃
RDS(on):
40mΩ@2.5V,3A
Gate Threshold Voltage (Vgs(th)):
900mV
Reverse Transfer Capacitance (Crss@Vds):
190pF@4V
Number:
1 P-Channel
Input Capacitance(Ciss):
740pF@4V
Pd - Power Dissipation:
350mW
Gate Charge(Qg):
4.5nC
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JSMSEMI
2258 Products
Shenzhen JSMicro Semiconductor Co., Ltd.
(hereinafter referred to as "JSMSEMI") is a company specializing in the production of Hall magnetic sensor SOC chips, driver ICs, power management chips (AC-DC/DC-DC), MOSFETs, diodes/transistors, transistors, thyristors, etc. JSMSEMI has a complete independent research and development system and masters a number of domestic leading key core technologies. It has developed various magnetic switch series chips, magnetic speed and direction sensor chips, linear sensor chips, and magnetic encoder chips, and provides high-reliability power analog IC chips for end customers in the automotive electronics, photovoltaic and energy storage, data center and industrial control market. JSMSEMI has passed the ISO9001:2008 quality management system certification, and its products meet SGS, SVHC and RoHS standards. JSMSEMI is committed to providing high-quality, high-efficiency and high-reliability products to global customers.
