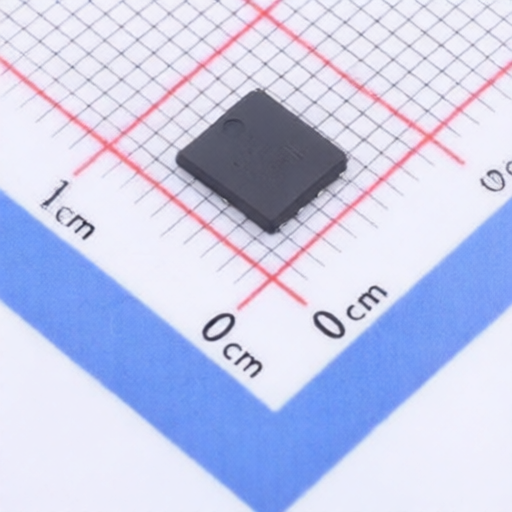

JSMSEMI JSM6764
Manufacturer:
JSMSEMI
Asian Brands
Mfr. Part #:
JSM6764
Package:
DFN-8(5x6)
Customer #:
Key Attributes:
MOSFET N-CH 30V 85A DFN-8(5x6)
Description:
N-Channel 30V 85A 42W Surface Mount DFN-8(5x6)
Datasheet:
JSMSEMI JSM6764
Products Specifications
Manufacturer:
Package:
DFN-8(5x6)
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
85A
Operating Temperature -:
-55℃~+150℃
RDS(on):
5mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1.9V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
69pF
Number:
1 N-channel
Output Capacitance(Coss):
700pF
Pd - Power Dissipation:
42W
Input Capacitance(Ciss):
2.12nF
Gate Charge(Qg):
37nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JSMSEMI
2258 Products
Shenzhen JSMicro Semiconductor Co., Ltd.
(hereinafter referred to as "JSMSEMI") is a company specializing in the production of Hall magnetic sensor SOC chips, driver ICs, power management chips (AC-DC/DC-DC), MOSFETs, diodes/transistors, transistors, thyristors, etc. JSMSEMI has a complete independent research and development system and masters a number of domestic leading key core technologies. It has developed various magnetic switch series chips, magnetic speed and direction sensor chips, linear sensor chips, and magnetic encoder chips, and provides high-reliability power analog IC chips for end customers in the automotive electronics, photovoltaic and energy storage, data center and industrial control market. JSMSEMI has passed the ISO9001:2008 quality management system certification, and its products meet SGS, SVHC and RoHS standards. JSMSEMI is committed to providing high-quality, high-efficiency and high-reliability products to global customers.
