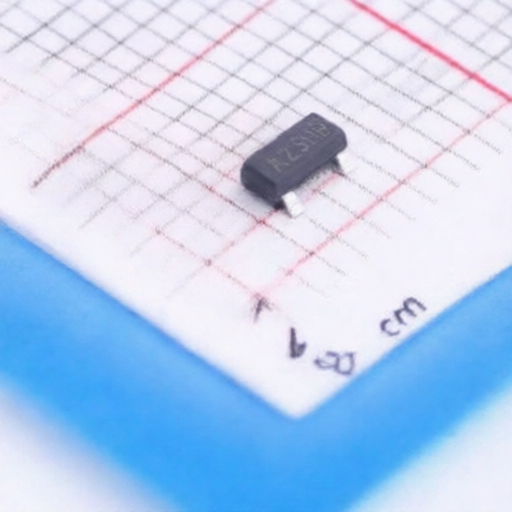

JSMSEMI JSM2302A-A2SHB
Manufacturer:
JSMSEMI
Asian Brands
Mfr. Part #:
JSM2302A-A2SHB
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET N-CH 20V 3A SOT-23
Description:
N-Channel 20V 3A 0.9W Surface Mount SOT-23
Datasheet:
JSMSEMI JSM2302A-A2SHB
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
3A
Operating Temperature -:
-55℃~+150℃
RDS(on):
60mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1V@50uA
Type:
N-Channel
Number:
1 N-channel
Pd - Power Dissipation:
900mW
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JSMSEMI
2258 Products
Shenzhen JSMicro Semiconductor Co., Ltd.
(hereinafter referred to as "JSMSEMI") is a company specializing in the production of Hall magnetic sensor SOC chips, driver ICs, power management chips (AC-DC/DC-DC), MOSFETs, diodes/transistors, transistors, thyristors, etc. JSMSEMI has a complete independent research and development system and masters a number of domestic leading key core technologies. It has developed various magnetic switch series chips, magnetic speed and direction sensor chips, linear sensor chips, and magnetic encoder chips, and provides high-reliability power analog IC chips for end customers in the automotive electronics, photovoltaic and energy storage, data center and industrial control market. JSMSEMI has passed the ISO9001:2008 quality management system certification, and its products meet SGS, SVHC and RoHS standards. JSMSEMI is committed to providing high-quality, high-efficiency and high-reliability products to global customers.
