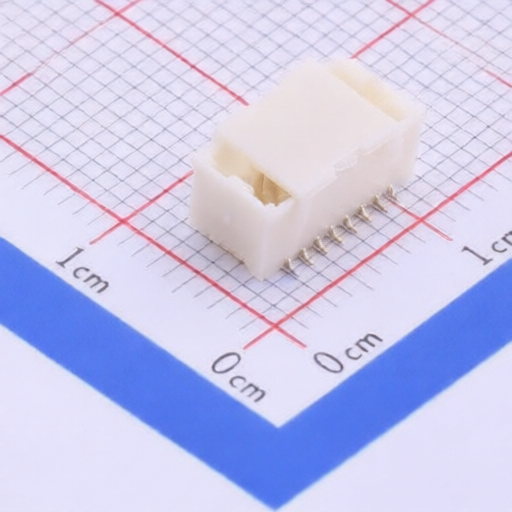

Joint Tech Elec A1001WV-SF-2X08PD01
Manufacturer:
Joint Tech Elec
Asian Brands
Mfr. Part #:
A1001WV-SF-2X08PD01
Package:
SMD,P=1mm
Customer #:
Key Attributes:
CONN HEADER SMD 16POS 1mm
Description:
Connector Header 16 position 1mm Pitch
Datasheet:
Joint Tech Elec A1001WV-SF-2X08PD01
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Y-Width of Bottom Edge on Board:
6.44mm
Reference Series:
-
Pins Structure:
2x8P
Contact Plating:
Tin
Contact Material:
Phosphor Bronze;PA6T
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
1mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
8
Number of Rows:
2
Z-Height of the Board:
6.25mm
Row Spacing:
-
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Joint Tech Elec
1417 Products
HR (Joint Tech Elec) was founded in 1984 in Taiwan, China, by Chairman Jinyi Xie. In 1998, the company expanded and established additional factories and production lines in Dongguan, Guangdong. The company primarily produces precision connectors and terminals.
