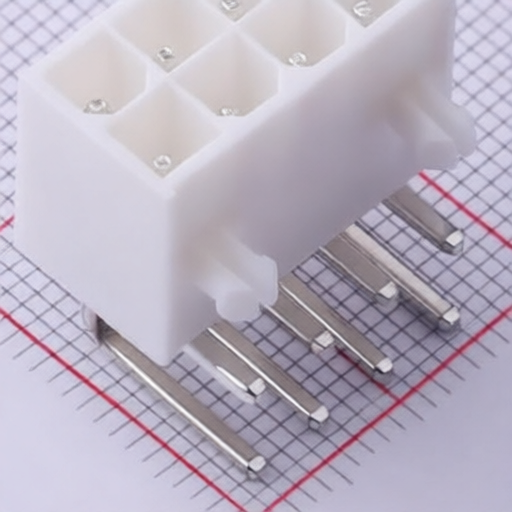

Joint Tech Elec C4255WR-F-2X04PV0

Joint Tech Elec C4255WR-F-2X04PV0

Name: Joint Tech Elec C4255WR-F-2X04PV0
Brand: Joint Tech Elec

Manufacturer: Joint Tech Elec Asian Brands

Mfr. Part #: C4255WR-F-2X04PV0

Package: Through Hole,Right Angle,P=4.2mm

Customer #:

Key Attributes: CONN HEADER TH R/A 8POS 4.2mm

Description: Connector Header 8 position 4.2mm Pitch 9A Right Angle -25℃~+85℃

Datasheet: Joint Tech Elec C4255WR-F-2X04PV0

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

Joint Tech Elec

Package:

Through Hole,Right Angle,P=4.2mm

Y-Width of Bottom Edge on Board:

12.8mm

Reference Series:

Pins Structure:

2x4P

Contact Plating:

Tin

Contact Material:

Brass;PA66

Operating Temperature:

-25℃~+85℃

Flame Retardant Rating:

UL94V-0

Pitch:

4.2mm

Voltage Rating (Max):

600V

Number of PINs Per Row:

Number of Rows:

X-Length of Bottom Edge on Board (Spacing Line):

18mm

Z-Height of the Board:

10mm

Row Spacing:

Mounting Type:

Right Angle

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	136
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11
