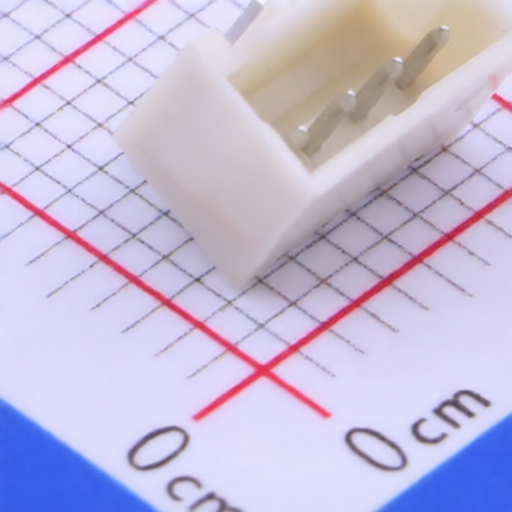

Joint Tech Elec A1501WR-S-04P
Manufacturer:
Joint Tech Elec
Asian Brands
Mfr. Part #:
A1501WR-S-04P
Package:
SMD,P=1.5mm
Customer #:
Key Attributes:
CONN HEADER SMD 4POS 1.5mm
Description:
Connector Header 4 position 1.5mm Pitch
Datasheet:
Joint Tech Elec A1501WR-S-04P
Products Specifications
Manufacturer:
Package:
SMD,P=1.5mm
Y-Width of Bottom Edge on Board:
7.75mm
Reference Series:
-
Pins Structure:
1x4P
Contact Plating:
Tin
Contact Material:
Brass;PA6T
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
1.5mm
Voltage Rating (Max):
350V
Number of PINs Per Row:
4
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
7.3mm
Z-Height of the Board:
4.45mm
Row Spacing:
-
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Joint Tech Elec
1417 Products
HR (Joint Tech Elec) was founded in 1984 in Taiwan, China, by Chairman Jinyi Xie. In 1998, the company expanded and established additional factories and production lines in Dongguan, Guangdong. The company primarily produces precision connectors and terminals.
