Joint Tech Elec F1003WR-S-10PNLNG1GB0R

Joint Tech Elec F1003WR-S-10PNLNG1GB0R

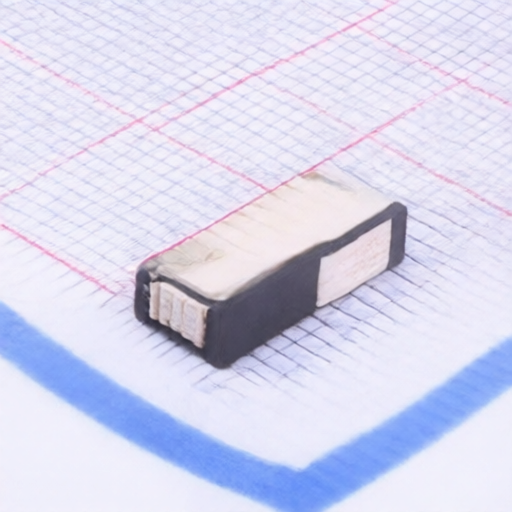

Name: Joint Tech Elec F1003WR-S-10PNLNG1GB0R
Brand: Joint Tech Elec

Manufacturer: Joint Tech Elec Asian Brands

Mfr. Part #: F1003WR-S-10PNLNG1GB0R

Package: SMD,P=1mm,Surface Mount,Right Angle

Customer #:

Key Attributes: CONN FFC FPC 10POS 1mm BOTTOM CNT SMD R/A

Description: FFC/FPC Connector 10 Position 1mm Pitch Bottom Contact Surface Mount, Right Angle

Products Specifications

Category:

Connectors, Interconnects/FFC, FPC (Flat Flexible) Connectors/FFC, FPC (Flat Flexible) Connector Assemblies

Manufacturer:

Joint Tech Elec

Package:

SMD,P=1mm,Surface Mount,Right Angle

Operating Temperature:

-25℃~+85℃

Locking Feature:

Slide Lock

Number of Contacts:

10P

Pitch:

1mm

Current Rating:

500mA

Voltage Rating (Max):

50V

Contact Type:

Bottom Contact

Mounting Type:

Surface Mount, Right Angle

FFC, FCB Thickness:

0.3mm

Contact Material:

Phosphor Bronze

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1500
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Joint Tech Elec

1417 Products

Asian Brand

HR (Joint Tech Elec) was founded in 1984 in Taiwan, China, by Chairman Jinyi Xie. In 1998, the company expanded and established additional factories and production lines in Dongguan, Guangdong. The company primarily produces precision connectors and terminals.
