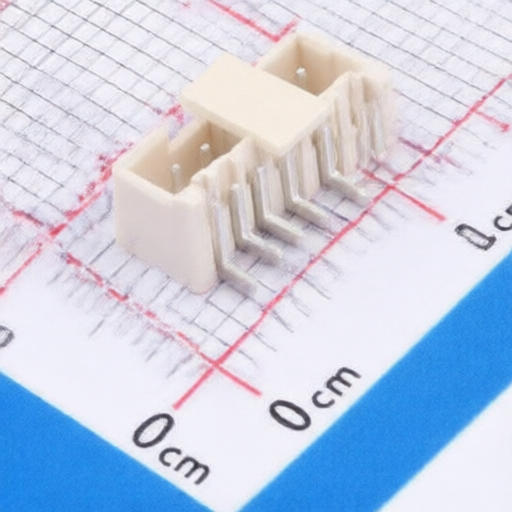

jkun A1505AWV-08-F4MB1-R-X
Manufacturer:
jkun
Asian Brands
Mfr. Part #:
A1505AWV-08-F4MB1-R-X
Package:
SMD,P=1.5mm
Customer #:
Key Attributes:
CONN HEADER SMD 8POS 1.5mm
Description:
Connector Header 8 position 1.5mm Pitch 3A Surface Mount,Vertical -25℃~+85℃
Datasheet:
jkun A1505AWV-08-F4MB1-R-X
Products Specifications
Manufacturer:
Package:
SMD,P=1.5mm
Y-Width of Bottom Edge on Board:
6.55mm
Reference Series:
-
Pins Structure:
1x8P
Contact Plating:
Tin
Contact Material:
Phosphor Bronze;LCP
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
1.5mm
Voltage Rating (Max):
350V
Number of PINs Per Row:
8
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
13.3mm
Z-Height of the Board:
5.05mm
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
