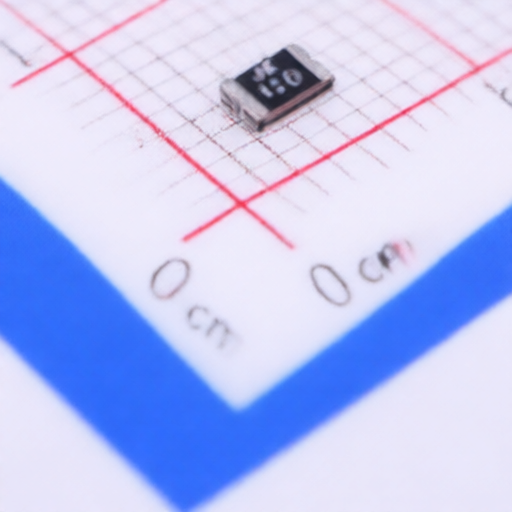

Jinrui JK-MSMD150-24V
Manufacturer:
Jinrui
Asian Brands
Mfr. Part #:
JK-MSMD150-24V
Package:
1812
Customer #:
Key Attributes:
PTC RESET FUSE 24V 1.5A 1812
Description:
Polymeric PTC Resettable Fuse 24V 1.5A Surface Mount 1812
Datasheet:
Jinrui JK-MSMD150-24V
Products Specifications
Category:
Manufacturer:
Package:
1812
Operating Temperature:
-40℃~+85℃
Voltage - Max:
24V
Hold Current:
1.5A
Pitch:
-
Current - Max:
100A
Trip Current:
3A
Resistance @ 25℃:
40mΩ
Time to Trip(Max):
500ms
Resistance - Post Trip (R1) (Max):
160mΩ
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536100000 |
| USHTS | 8536100040 |
| TARIC | 8536109010 |
| CAHTS | 8536100000 |
| BRHTS | 85361000 |
| INHTS | 85361010 |
| MXHTS | 8536.10.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Jinrui
447 Products
Founded in 2002, Shenzhen Jinrui Electronic Materials Co., Ltd. (referred to as Jinrui Company) is a national high-tech enterprise specializing in R&D, production and sales of Polymer PTC (referred to as PPTC). Jinrui Company has the technical background of the Institute of Metal Research of the Chinese Academy of Sciences (Shenyang), and independently developed the JK brand plug-in, conventional surface mount, low-resistance surface mount, ring, strip-type five series of PPTC self-recovery fuse products. There are nearly 1,200 product models with various pressure-resistant values ranging from 6V to 600V. JKPPTC products currently cover many areas of electronic appliances.
