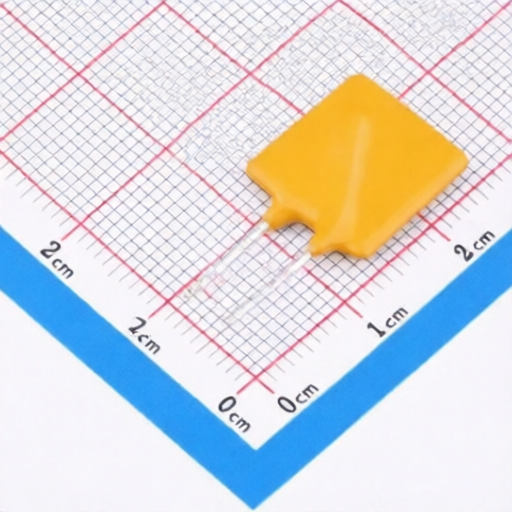

Jinrui JK30-300
Manufacturer:
Jinrui
Asian Brands
Mfr. Part #:
JK30-300
Package:
Through Hole,P=5.1mm
Customer #:
Key Attributes:
PTC RESET FUSE 30V 3A TH
Description:
Polymeric PTC Resettable Fuse 30V 3A Through Hole P=5.1mm
Datasheet:
Jinrui JK30-300
Products Specifications
Category:
Manufacturer:
Package:
Through Hole,P=5.1mm
Operating Temperature:
-40℃~+85℃
Voltage - Max:
30V
Hold Current:
3A
Pitch:
-
Current - Max:
40A
Power Dissipation:
2W
Trip Current:
6A
Time to Trip(Max):
11s
Resistance @ 25℃:
30mΩ
Resistance - Post Trip (R1) (Max):
70mΩ
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536100000 |
| USHTS | 8536100040 |
| TARIC | 8536109010 |
| CAHTS | 8536100000 |
| BRHTS | 85361000 |
| INHTS | 85361010 |
| MXHTS | 8536.10.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Jinrui
447 Products
Founded in 2002, Shenzhen Jinrui Electronic Materials Co., Ltd. (referred to as Jinrui Company) is a national high-tech enterprise specializing in R&D, production and sales of Polymer PTC (referred to as PPTC). Jinrui Company has the technical background of the Institute of Metal Research of the Chinese Academy of Sciences (Shenyang), and independently developed the JK brand plug-in, conventional surface mount, low-resistance surface mount, ring, strip-type five series of PPTC self-recovery fuse products. There are nearly 1,200 product models with various pressure-resistant values ranging from 6V to 600V. JKPPTC products currently cover many areas of electronic appliances.
