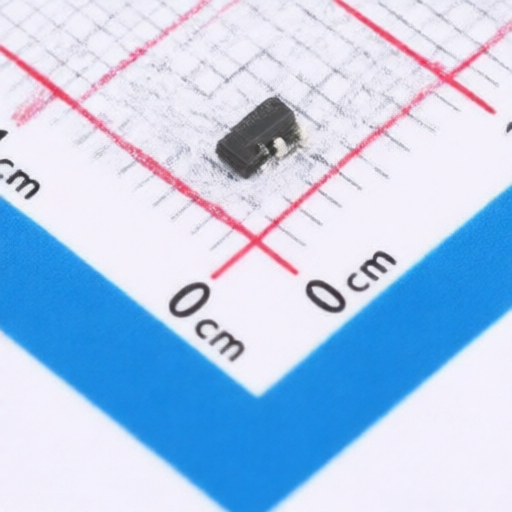

JingYang TP6002AX
Manufacturer:
JingYang
Asian Brands
Mfr. Part #:
TP6002AX
Package:
SOT-23-5L
Customer #:
Key Attributes:
High-Side Power Switches
Description:
1 1A Active High High Side Switch SOT-23-5L Power Distribution Switches, Load Drivers RoHS
Datasheet:
JingYang TP6002AX
Products Specifications
Category:
Manufacturer:
Package:
SOT-23-5L
Operating Temperature:
-40℃~+85℃
Features:
Over Temperature Protection;Overcurrent Protection(OCP);Undervoltage Protection(UVP)
number of channels:
1
Maximum Continuous Current:
1A
Control Input Logic:
Active High
Operating Voltage:
2.4V~5.5V
RDS(on):
80mΩ
Type:
High Side Switch
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536500090 |
| USHTS | 8536507000 |
| TARIC | 8536500300 |
| CAHTS | 8536501000 |
| BRHTS | 85365090 |
| INHTS | 85365090 |
| MXHTS | 8536.50.09 |
