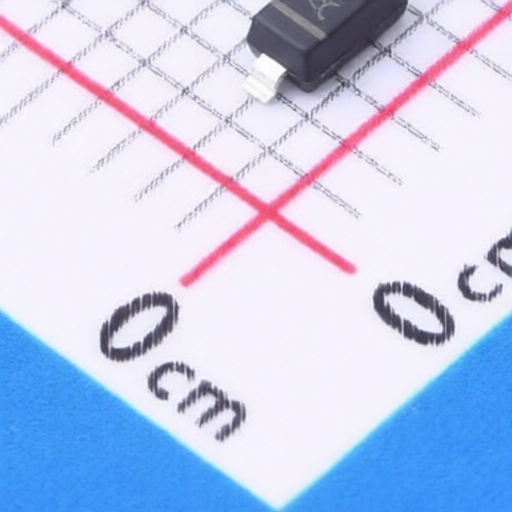

Jingdao Microelectronics BAV19WA

Jingdao Microelectronics BAV19WA

Name: Jingdao Microelectronics BAV19WA
Brand: Jingdao Microelectronics

Manufacturer: Jingdao Microelectronics Asian Brands

Mfr. Part #: BAV19WA

Package: SOD-123W

Customer #:

Key Attributes: DIODE GP 120V 0.2A SOD-123W

Description: Diode Independent 120V 0.2A Surface Mount SOD-123W

Datasheet: Jingdao Microelectronics BAV19WA

Products Specifications

Category:

Discrete Semiconductors/Diodes/Single Diodes

Manufacturer:

Jingdao Microelectronics

Package:

SOD-123W

Non-Repetitive Peak Forward Surge Current:

Reverse Leakage Current (Ir):

100nA

Reverse Recovery Time (trr):

50ns

Operating Junction Temperature Range:

-55℃~+150℃@(Tj)

Diode Configuration:

Independent

Voltage - DC Reverse (Vr) (Max):

120V

Pd - Power Dissipation:

500mW

Voltage - Forward(Vf@If):

1.25V@200mA

Current - Rectified:

200mA

Additional Information

Type	Details
Minimum	50
Multiple	50
Standard Packaging	3000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541100000
USHTS	8541100040
TARIC	8541100000
CAHTS	8541100090
BRHTS	85411011
INHTS	85411000
MXHTS	8541.10.01
