Jingdao Microelectronics BAT54S

Jingdao Microelectronics BAT54S

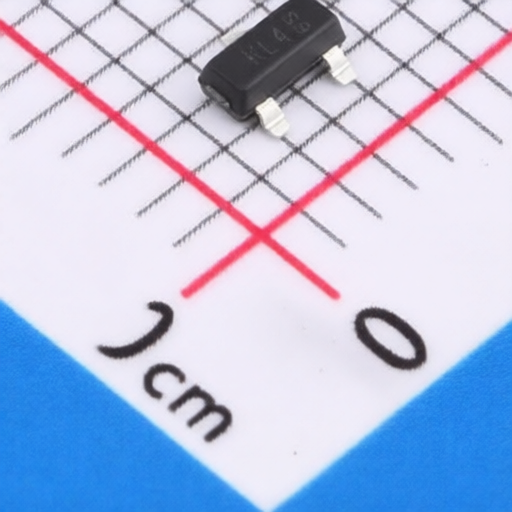

Name: Jingdao Microelectronics BAT54S
Brand: Jingdao Microelectronics

Manufacturer: Jingdao Microelectronics Asian Brands

Mfr. Part #: BAT54S

Package: SOT-23

Customer #:

Key Attributes: DIODE ARR SCHOTTKY 30V SOT-23

Description: Diode Array 1 Pair Series Connection 30V 0.2A Surface Mount SOT-23

Datasheet: Jingdao Microelectronics BAT54S

Products Specifications

Category:

Discrete Semiconductors/Diodes/Single Diodes

Manufacturer:

Jingdao Microelectronics

Package:

SOT-23

Non-Repetitive Peak Forward Surge Current:

600mA

Reverse Leakage Current (Ir):

2uA@25V

Operating Junction Temperature Range:

-40℃~+125℃

Diode Configuration:

1 Pair Series Connection

Voltage - DC Reverse (Vr) (Max):

30V

Voltage - Forward(Vf@If):

1V@100mA

Current - Rectified:

200mA

Additional Information

Type	Details
Minimum	50
Multiple	50
Standard Packaging	3000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541100000
USHTS	8541100040
TARIC	8541100000
CAHTS	8541100090
BRHTS	85411011
INHTS	85411000
MXHTS	8541.10.01

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Jingdao Microelectronics

2361 Products

Asian Brand

Shangdong Jingdao Microelectronics Co.,Ltd. is primarily engaged in developing and manufacturing semiconductor products. Our industrial park located in Oriental Holy City-Qufu, the hometown of Confucious. There are 122000 square meters in our industrial park with 20000 square meters producing area. We had advanced GPP wafer producing lines and automatic SMD packaging producing linea. We could provide High Coast-effective whole series diodes for customers.
