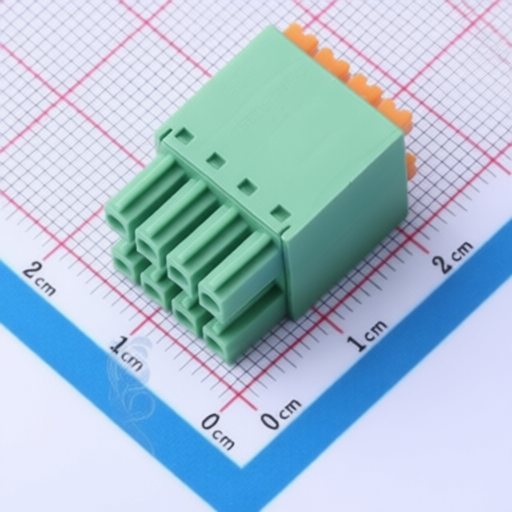

JILN JL15EDGKNHC-35004G01
Manufacturer:
JILN
Asian Brands
Mfr. Part #:
JL15EDGKNHC-35004G01
Package:
P=3.5mm
Customer #:
Key Attributes:
TERM BLOCK PLUG 3.5mm
Description:
Plug 3.5mm Pitch
Datasheet:
JILN JL15EDGKNHC-35004G01
Products Specifications
Manufacturer:
Package:
P=3.5mm
Wire Gauge - mm2:
0.2~1.5
Number of Pins:
8P
Wire Gauge - AWG:
16~24
Voltage Rating (Max):
300V
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
4
Current Rating:
8A
Color:
Green
Outlet Direction (Vertical Basis):
Top Entry
Connection Type:
Spring Connection
Pitch:
3.5mm
Connector Type:
Plug
Number of Rows:
2
Pin Structure:
2x4P
Termination Style:
-
Mounting Type:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 300 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
