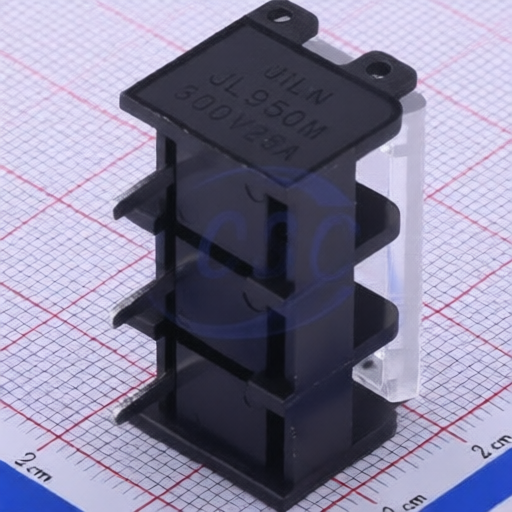

JILN JL950M-95003B01
Manufacturer:
JILN
Asian Brands
Mfr. Part #:
JL950M-95003B01
Package:
Through Hole,P=9.5mm
Customer #:
Key Attributes:
TERM BLK BARRIER 3CIRCUIT 9.5mm
Description:
3 Position Barrier Block Connector 12~22 AWG 300V 25A Through Hole
Datasheet:
JILN JL950M-95003B01
Products Specifications
Manufacturer:
Package:
Through Hole,P=9.5mm
Number of Pins:
3P
Number of Positions or Pins:
1x3P
Pin Location:
Side Mount
Barrier Type:
With Cover Plate
voltage:
300V
Pitch:
9.5mm
Number of Rows:
1
Wire Gauge - mm2:
-
Number of PINs Per Row:
3
Current Rating:
25A
Operating Temperature:
-40℃~+105℃
Color:
Black
Screw Specification:
M4
Wire Gauge - AWG:
12~22
Mounting Type:
Straight Pin
Additional Information
| Type | Details |
|---|---|
| Minimum | 7 |
| Multiple | 7 |
| Standard Packaging | 224 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
