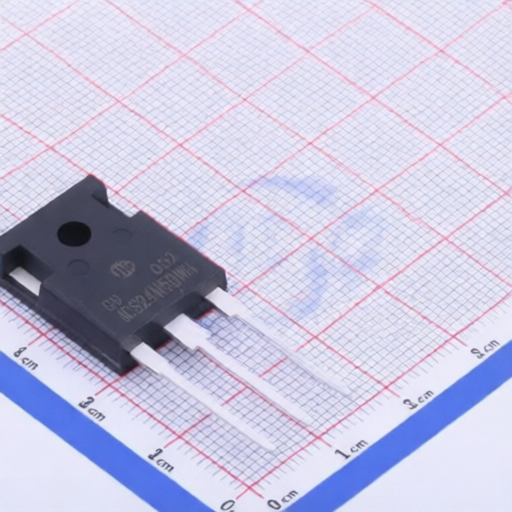

Jilin Sino-Microelectronics JCS24N50WH

Jilin Sino-Microelectronics JCS24N50WH

Name: Jilin Sino-Microelectronics JCS24N50WH
Brand: Jilin Sino-Microelectronics

Manufacturer: Jilin Sino-Microelectronics Asian Brands

Mfr. Part #: JCS24N50WH

Package: TO-247-3

Customer #:

Key Attributes: N-CHANNEL MOSFET, Current:24A, Voltage:500V

Description: 500V 24A 190mΩ@10V 5V@250uA 271W TO-247-3 Single FETs, MOSFETs RoHS

Datasheet: Jilin Sino-Microelectronics JCS24N50WH

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Jilin Sino-Microelectronics

Package:

TO-247-3

Drain to Source Voltage:

500V

Current - Continuous Drain(Id):

24A

Operating Temperature -:

-55℃~+150℃

RDS(on):

190mΩ@10V

Gate Threshold Voltage (Vgs(th)):

5V@250uA

Reverse Transfer Capacitance (Crss@Vds):

55pF

Number:

Output Capacitance(Coss):

620pF

Input Capacitance(Ciss):

4.16nF

Pd - Power Dissipation:

271W

Gate Charge(Qg):

100nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	25
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
