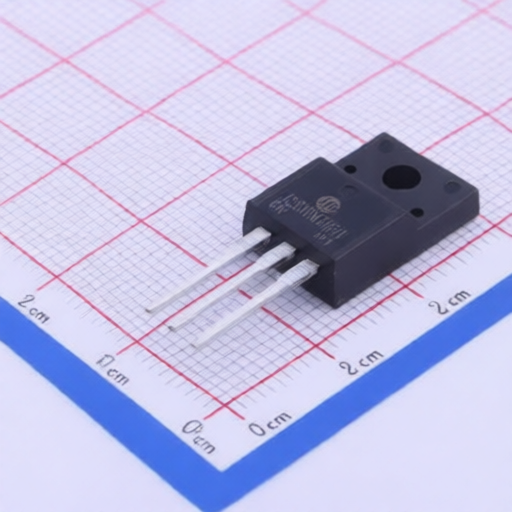

Jilin Sino-Microelectronics JCS10N70FH-220MF

Jilin Sino-Microelectronics JCS10N70FH-220MF

Name: Jilin Sino-Microelectronics JCS10N70FH-220MF
Brand: Jilin Sino-Microelectronics

Manufacturer: Jilin Sino-Microelectronics Asian Brands

Mfr. Part #: JCS10N70FH-220MF

Package: TO-220F-3

Customer #:

Key Attributes: MOSFET N-CH 700V 10A TO-220F-3

Description: N-Channel 700V 10A 80W Through Hole TO-220F-3

Datasheet: Jilin Sino-Microelectronics JCS10N70FH-220MF

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Jilin Sino-Microelectronics

Package:

TO-220F-3

Drain to Source Voltage:

700V

Current - Continuous Drain(Id):

10A

Operating Temperature -:

-55℃~+150℃

RDS(on):

1.1Ω@10V

Gate Threshold Voltage (Vgs(th)):

5V@250uA

Reverse Transfer Capacitance (Crss@Vds):

14pF

Number:

1 N-channel

Output Capacitance(Coss):

200pF

Input Capacitance(Ciss):

1.3nF

Pd - Power Dissipation:

80W

Gate Charge(Qg):

55nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	50
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

About Product

Jilin Sino-Microelectronics JCS10N70FH-220MF

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Jilin Sino-Microelectronics

236 Products

Asian Brand

Jilin Sino-Microelectronics Co., Ltd. (JSMC), a hi-tech enterprise, is mainly engaged in designing, manufacturing and marketing of semiconductor devices. Benefited from decades of innovation and upgrade, JSMC ranks as one of the top 5 semiconductor device companies inChinaand is certified as postdoctoral workstation and innovative enterprise by both Ministry of Science and Technology and Chinese Academy of Sciences.
