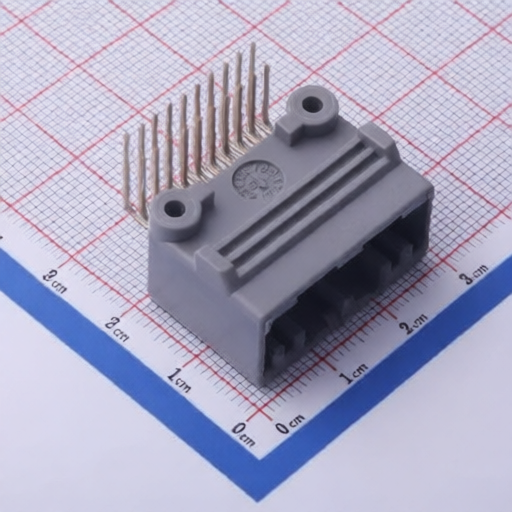

JAE Electronics MX34020NF1
Manufacturer:
JAE Electronics
Mfr. Part #:
MX34020NF1
Package:
Through Hole,Right Angle,P=2.2mm(Staggered Pins)
Customer #:
Key Attributes:
CONN HEADER TH R/A 20POS 2.2mm
Description:
Connector Header 20 position 2.2mm Pitch 3A Right Angle -40℃~+85℃
Datasheet:
JAE Electronics MX34020NF1
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.2mm(Staggered Pins)
Pins Structure:
2x10P
Reference Series:
-
Contact Plating:
Tin
Contact Material:
Brass
Pitch:
2.2mm
Number of PINs Per Row:
10
Number of Rows:
2
Row Spacing:
3mm
Operating Temperature:
-40℃~+85℃
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 18 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
