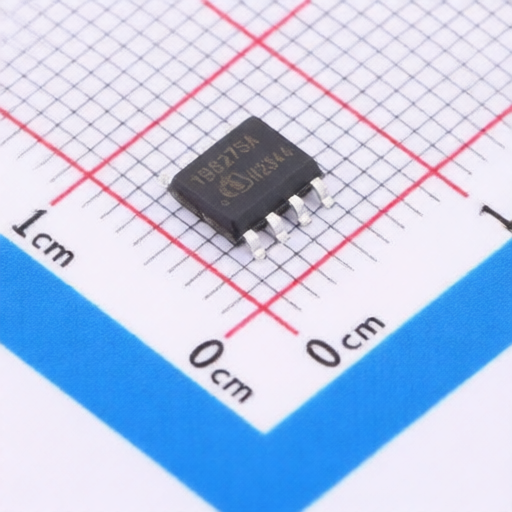

Infineon 1EDB8275FXUMA1
Manufacturer:
Infineon
Mfr. Part #:
1EDB8275FXUMA1
Package:
SOIC-8
Customer #:
Key Attributes:
Single-channel isolated gate driver ICs in 150mil DSO package
Description:
High Side 5.4A 8.5V~20V 8.3ns 5ns 9.8A SOIC-8 Isolators - Gate Drivers RoHS
Datasheet:
Infineon 1EDB8275FXUMA1
Products Specifications
Category:
Manufacturer:
Package:
SOIC-8
Driven Configuration:
High Side
Operating Temperature:
-40℃~+150℃
Propagation Delay(tpd):
45ns;45ns
Load Type:
MOSFET
Input Logic Level - High:
1.9V
Current - Output High(IOH):
5.4A
Voltage - Supply:
8.5V~20V
Quiescent Current(Iq):
850uA
Rise Time:
8.3ns
Fall Time:
5ns
Number of Channels:
1
Current - Output Low(IOL):
9.8A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
