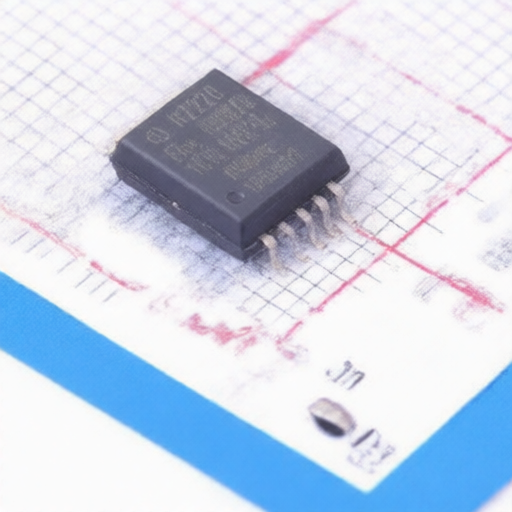

Infineon 1EDC60H12AH
Manufacturer:
Infineon
Mfr. Part #:
1EDC60H12AH
Package:
DSO-8
Customer #:
Key Attributes:
EiceDRIVER 1EDC Compact Single channel IGBT gate driver IC in wide body package
Description:
10A 3.1V~17V 5ns 4ns 9.4A DSO-8 Isolators - Gate Drivers RoHS
Datasheet:
Infineon 1EDC60H12AH
Products Specifications
Category:
Manufacturer:
Package:
DSO-8
Operating Temperature:
-40℃~+125℃
Propagation Delay(tpd):
120ns;125ns
Load Type:
IGBT
Current - Output High(IOH):
10A
Quiescent Current(Iq):
650uA
Voltage - Supply:
3.1V~17V
Rise Time:
5ns
Fall Time:
4ns
Number of Channels:
1
Current - Output Low(IOL):
9.4A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
