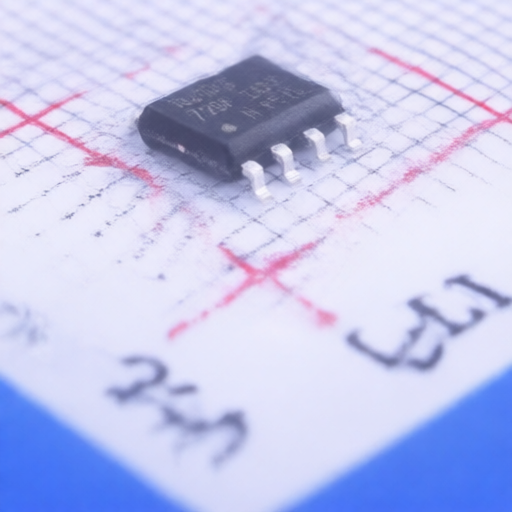

Infineon IR2101STRPBF
Manufacturer:
Infineon
Mfr. Part #:
IR2101STRPBF
Package:
SOIC-8
Customer #:
Key Attributes:
High and Low Side Driver
Description:
SOIC-8 Gate Drivers RoHS
Datasheet:
Infineon IR2101STRPBF
Products Specifications
Manufacturer:
Package:
SOIC-8
Operating Temperature:
-40℃~+150℃@(Tj)
Propagation Delay tpLH:
160ns
Propagation Delay tpHL:
150ns
Peak Output Current(Source):
130mA
Peak Output Current(Sink):
270mA
Rise Time:
100ns
Features:
Under Voltage Protection
Fall Time:
50ns
Quiescent Current(Iq):
150uA
Load Type:
MOSFET;IGBT
Input Voltage (Vin):
10V~20V
Driven Configuration:
Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
