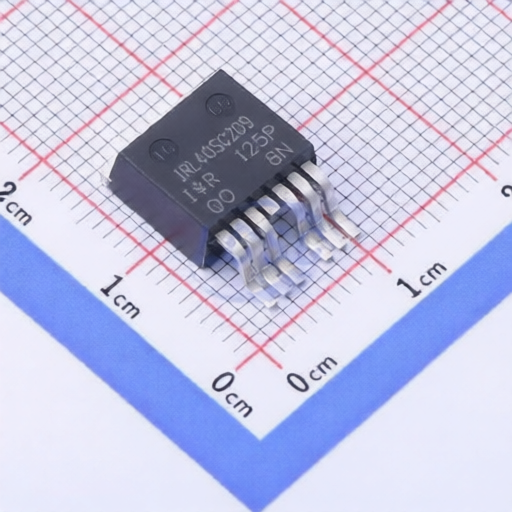

Infineon IRL40SC209
Manufacturer:
Infineon
Mfr. Part #:
IRL40SC209
Package:
D2PAK-7
Customer #:
Description:
N-Channel 40V 478A 375W Surface Mount D2PAK-7
Datasheet:
Infineon IRL40SC209
Products Specifications
Manufacturer:
Package:
D2PAK-7
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
478A
Operating Temperature -:
-55℃~+175℃
RDS(on):
0.8mΩ@10V,100A
Gate Threshold Voltage (Vgs(th)):
1V
Reverse Transfer Capacitance (Crss@Vds):
1.37nF@25V
Number:
1 N-channel
Input Capacitance(Ciss):
15.27nF
Pd - Power Dissipation:
375W
Gate Charge(Qg):
267nC@10V
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
