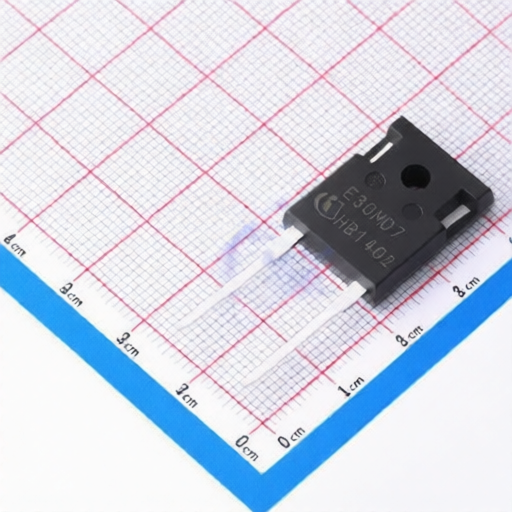

Infineon IDWD30E120D7XKSA1
Manufacturer:
Infineon
Mfr. Part #:
IDWD30E120D7XKSA1
Package:
TO-247-2
Customer #:
Key Attributes:
Diode 1200V 52A TO-247-2
Description:
144A 135ns 1.2kV 3V@30A 52A TO-247-2 Single Diodes RoHS
Datasheet:
Infineon IDWD30E120D7XKSA1
Products Specifications
Manufacturer:
Package:
TO-247-2
Non-Repetitive Peak Forward Surge Current:
144A
Reverse Leakage Current (Ir):
20uA
Reverse Recovery Time (trr):
135ns
Operating Junction Temperature Range:
-40℃~+175℃
Voltage - DC Reverse (Vr) (Max):
1.2kV
Pd - Power Dissipation:
156W
Voltage - Forward(Vf@If):
3V@30A
Current - Rectified:
52A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 240 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541100000 |
| USHTS | 8541100040 |
| TARIC | 8541100000 |
| CAHTS | 8541100090 |
| BRHTS | 85411011 |
| INHTS | 85411000 |
| MXHTS | 8541.10.01 |
