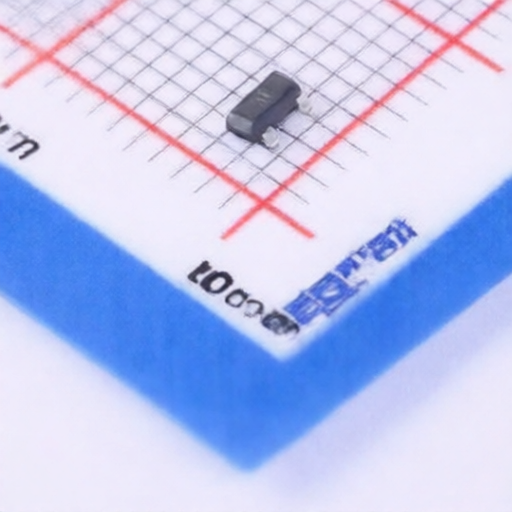

IDCHIP BAW56
Manufacturer:
IDCHIP
Asian Brands
Mfr. Part #:
BAW56
Package:
SOT-23
Customer #:
Key Attributes:
DIODE ARR GP 85V 215mA SOT-23
Description:
Diode Array 1 Pair Common Anode 85V 215mA Surface Mount SOT-23
Datasheet:
IDCHIP BAW56
Products Specifications
Manufacturer:
Package:
SOT-23
Reverse Leakage Current (Ir):
1uA@75V
Reverse Recovery Time (trr):
4ns
Voltage - DC Reverse (Vr) (Max):
85V
Diode Configuration:
1 Pair Common Anode
Operating Junction Temperature Range:
-
Pd - Power Dissipation:
350mW
Voltage - Forward(Vf@If):
1.25V@150mA
Current - Rectified:
215mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541100000 |
| USHTS | 8541100040 |
| TARIC | 8541100000 |
| CAHTS | 8541100090 |
| BRHTS | 85411011 |
| INHTS | 85411000 |
| MXHTS | 8541.10.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
IDCHIP
163 Products
Shenzhen Indreamchip Electronic Technology Co., Ltd.
(hereinafter referred to as "IDCHIP") is a high-tech enterprise specializing in the design, development, production and sales of integrated circuit chips and semiconductor microelectronics-related products. The company's main products include SiC products, GaN products, memory chips, power amplifier chips, charging chips and encoding chips. Since its establishment, IDCHIP has always adhered to the development path of independent innovation and implemented the development strategy of leading technology and quality. At present, the company has a number of invention patents and a number of layout copyright design registrations. In the past 4 years, IDCHIP has successfully transferred advanced processes such as HVBCD, BCD, Trench MOSFET, IGBT, FRD, etc. to Chinese wafer fabs, and on this basis has designed and developed a series of high-quality LED drivers, audio amplifiers and LED lighting chips, contributing to the development of the e
