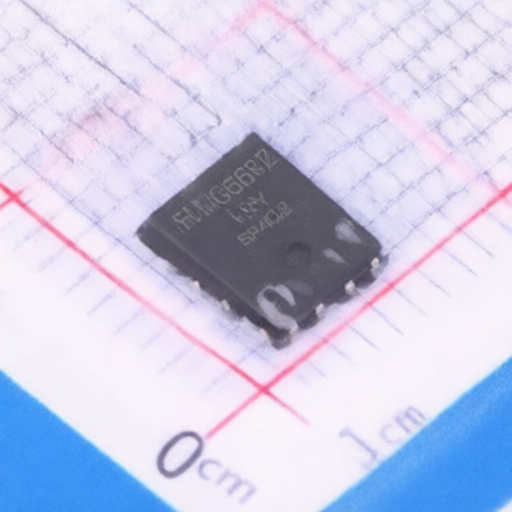

HXY MOSFET FDMS6681Z-HXY
Manufacturer:
HXY MOSFET
Mfr. Part #:
FDMS6681Z-HXY
Package:
DFN-8(5x6)
Customer #:
Description:
P-Channel 30V 100A 120W Surface Mount DFN-8(5x6)
Datasheet:
HXY MOSFET FDMS6681Z-HXY
Products Specifications
Manufacturer:
Package:
DFN-8(5x6)
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
100A
Operating Temperature -:
-55℃~+150℃
RDS(on):
-
Gate Threshold Voltage (Vgs(th)):
1.2V
Reverse Transfer Capacitance (Crss@Vds):
140pF@25V
Number:
1 P-Channel
Input Capacitance(Ciss):
3.45nF@25V
Pd - Power Dissipation:
120W
Gate Charge(Qg):
60nC@10V
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
