Huixin H15N10D
Manufacturer:
Huixin
Asian Brands
Mfr. Part #:
H15N10D
Package:

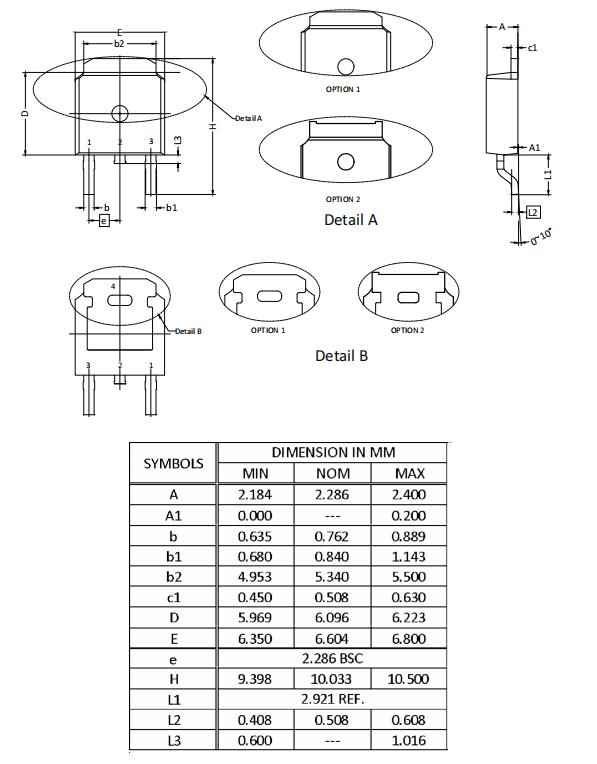

TO-252
Customer #:
Key Attributes:
MOSFET N-CH 100V 15A TO-252
Description:
100V 15A 75mΩ@10V 2V 1 N-channel 42W TO-252 Single FETs, MOSFETs RoHS
Datasheet:
Huixin H15N10D
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
15A
RDS(on):
75mΩ@10V
Operating Temperature -:
-55℃~+175℃
Gate Threshold Voltage (Vgs(th)):
2V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
38pF
Number:
1 N-channel
Input Capacitance(Ciss):
670pF
Output Capacitance(Coss):
47pF
Pd - Power Dissipation:
42W
Gate Charge(Qg):
20nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
