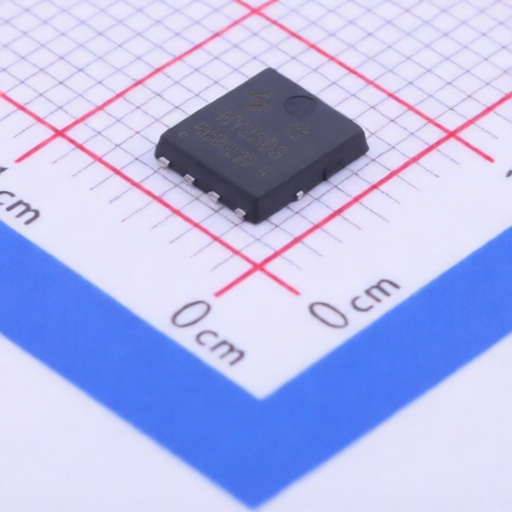

HUAYI HY3503C2

Name: HUAYI HY3503C2
Brand: HUAYI

Manufacturer: HUAYI Asian Brands

Mfr. Part #: HY3503C2

Package: PPAK-8L(5x6)

Customer #:

Description: 30V 150A 2.5mΩ@10V 3V@250uA 1 N-channel 156W PPAK-8L(5x6) Single FETs, MOSFETs RoHS

Datasheet: HUAYI HY3503C2

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

HUAYI

Package:

PPAK-8L(5x6)

Drain to Source Voltage:

30V

Current - Continuous Drain(Id):

150A

Operating Temperature -:

-55℃~+150℃

RDS(on):

2.5mΩ@10V

Gate Threshold Voltage (Vgs(th)):

3V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

153pF

Number:

1 N-channel

Output Capacitance(Coss):

541pF

Input Capacitance(Ciss):

4.9nF

Pd - Power Dissipation:

156W

Gate Charge(Qg):

100nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	5000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

HUAYI

323 Products

Asian Brand

HUAYI, also known as Hymexa, was established in 2017 and is a high-tech enterprise under the Huatian Electronics Group, focusing on the research, design, packaging, testing, and sales of semiconductor power devices. Its main product lines include MOSFET, Trench MOSFET, and SGT MOSFET.
