HUASHUO HSCB2004A
Manufacturer:
HUASHUO
Asian Brands
Mfr. Part #:
HSCB2004A
Package:
DFN-6L(2x2)
Customer #:
Key Attributes:
MOSFET N/P-CH 20V 5A DFN-6L(2x2)
Description:
20V 5A 700mV 1 N-Channel + 1 P-Channel 1.6W DFN-6L(2x2) Single FETs, MOSFETs RoHS
Datasheet:
HUASHUO HSCB2004A
Products Specifications
Manufacturer:
Package:
DFN-6L(2x2)
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
5A
RDS(on):
16mΩ@4.5V;27mΩ@4.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
700mV
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
55pF;83pF
Number:
1 N-Channel + 1 P-Channel
Pd - Power Dissipation:
1.6W

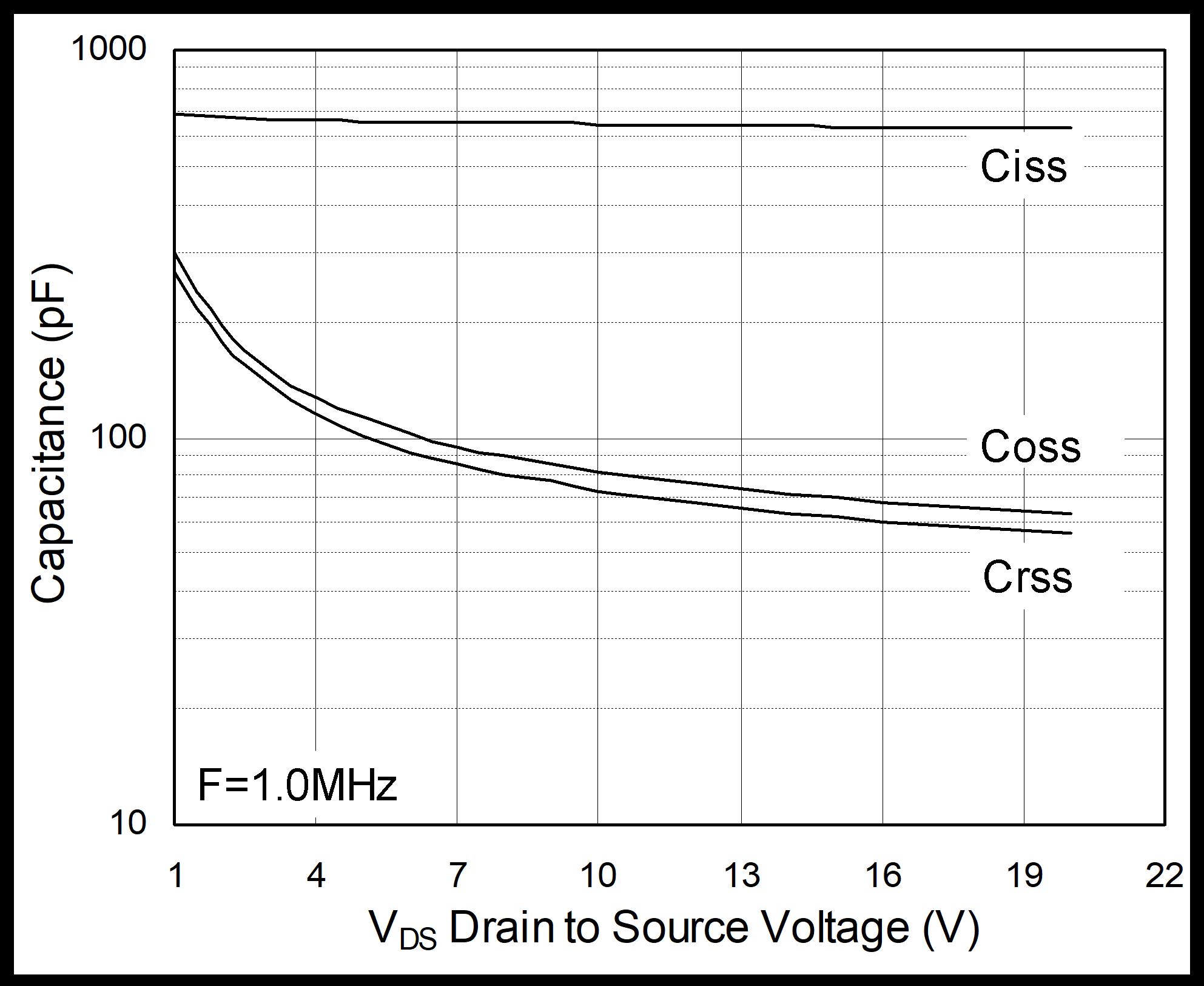

Input Capacitance(Ciss):
557pF;877pF
Output Capacitance(Coss):
69pF;92pF
Gate Charge(Qg):
7.6nC@4.5V;8.8nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
