HUASHUO HSL2N15
Manufacturer:
HUASHUO
Asian Brands
Mfr. Part #:
HSL2N15
Package:

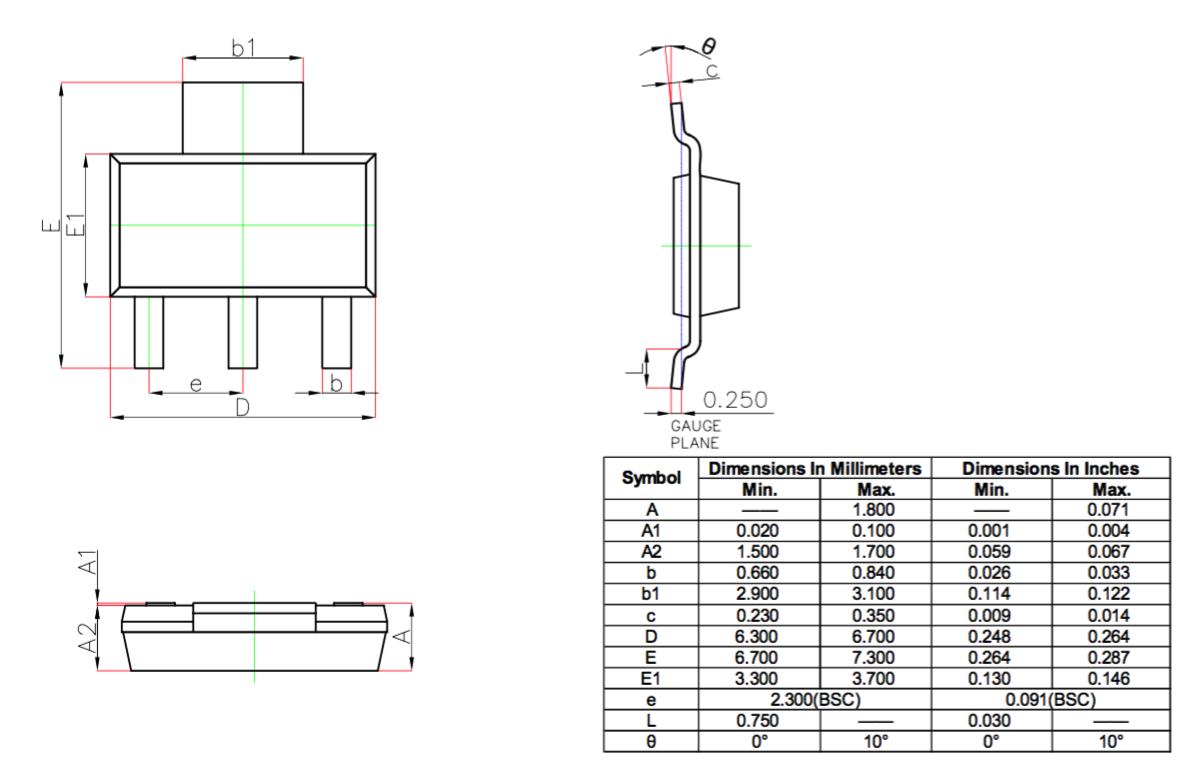

SOT-223
Customer #:
Key Attributes:
MOSFET N-CH 150V 2A SOT-223
Description:
150V 2A 210mΩ@10V 1.8V 1 N-channel 2W SOT-223 Single FETs, MOSFETs RoHS
Datasheet:
HUASHUO HSL2N15
Products Specifications
Manufacturer:
Package:
SOT-223
Drain to Source Voltage:
150V
Current - Continuous Drain(Id):
2A
RDS(on):
210mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1.8V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
25pF
Number:
1 N-channel
Input Capacitance(Ciss):
840pF
Output Capacitance(Coss):
119pF
Pd - Power Dissipation:
2W
Gate Charge(Qg):
18nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HUASHUO
618 Products
Huashuo Semiconductor Co., Ltd.
(hereinafter referred to as "HUASHUO") is a semiconductor device company focusing on independent research and development, sales and service. HUASHUO adheres to the principle of "developing new technologies, manufacturing new products, and creating new solutions." It has the design capabilities of a full range of medium/low voltage Power MOSFET discrete devices and special process ICs. The products are widely used in computers, automotive electronics, industrial electronics, consumer electronics, communication power supplies, lithium batteries and other new energy industries.
