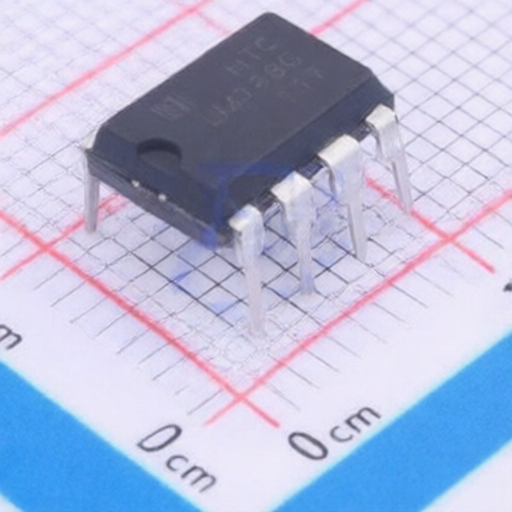

HTC LM358GN
Manufacturer:
HTC
Mfr. Part #:
LM358GN
Package:
DIP-8
Customer #:
Key Attributes:
Dual Operational Amplfiers
Description:
7mV 20nA 700V/ms 15dB 700kHz 2 DIP-8 Amplifiers RoHS
Datasheet:
HTC LM358GN
Products Specifications
Manufacturer:
Package:
DIP-8
Vos - Input Offset Voltage:
7mV
Input offset current drift(Ios TC):
10pA/℃
Ib - Input Bias Current:
20nA
Slew Rate:
700V/ms
Quiescent Current(Iq):
1mA
Common Mode Rejection Ratio(CMRR):
15dB
Output Current:
50mA
Operating Temperature:
-40℃~+125℃
Voltage - Supply:
-22.5V~22.5V;5V~40V
Gain Bandwidth Product:
700kHz
Input Offset Voltage Drift(Vos TC):
9uV/℃
Maximum Power Supply Range (Vdd-Vss):
45V
Number of Channels:
2
Rail To Rail:
-
Input Offset Current(Ios):
2nA
Noise density(eN):
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
