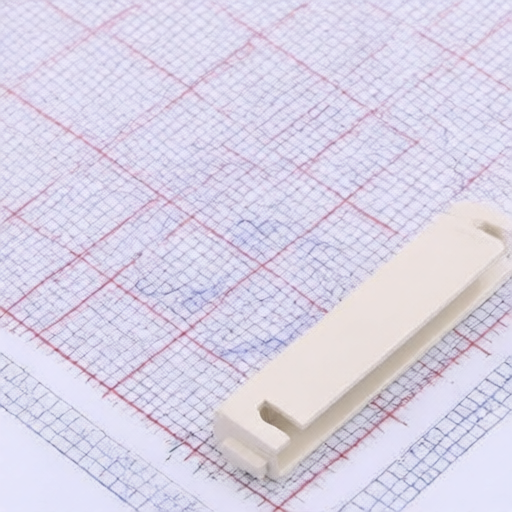

HOOYA XH2500-WT-14
Manufacturer:
HOOYA
Asian Brands
Mfr. Part #:
XH2500-WT-14
Package:
SMD,P=2.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 14POS 2.5mm
Description:
Connector Header 14 position 2.5mm Pitch Surface Mount, Right Angle
Datasheet:
HOOYA XH2500-WT-14
Products Specifications
Manufacturer:
Package:
SMD,P=2.5mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
10.5mm
Pins Structure:
1x14P
Contact Plating:
Tin
Contact Material:
Brass;LCP
Pitch:
2.5mm
Number of PINs Per Row:
14
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
37.5mm
Z-Height of the Board:
6.11mm
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
